M24308/2-3F
ActiveAmphenol Interconnect India

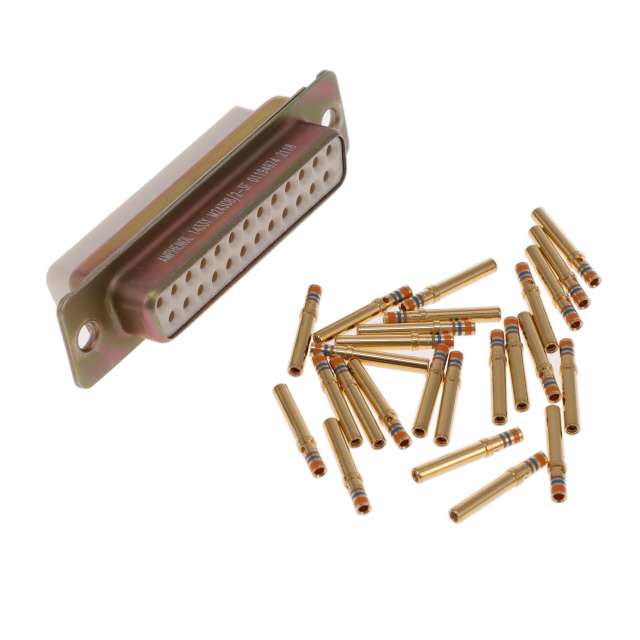

DSUB CONN,CRIMP, SOCKET, CADMIUM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
M24308/2-3F
ActiveAmphenol Interconnect India
DSUB CONN,CRIMP, SOCKET, CADMIUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M24308/2-3F | M24308/2 Series |
|---|---|---|
| Color | Natural | Natural |
| Connector Style | D-Sub | D-Sub |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Type | Signal | Signal |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Dielectric Material | Polyester, Glass Filled | Polyester, Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Number of Positions | - | 9 - 37 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Material, Finish | Yellow Cadmium Plated, Steel | Yellow Cadmium Plated, Steel, Yellow Chromate Plated Zinc |
| Shell Size, Connector Layout | - | 4 (DC, C) |
| Shell Size, Connector Layout [custom] | DB, B | DB, B, DE, E |
| Shell Size, Connector Layout [custom] | 3 | 1 - 3 |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 26 AWG | 26 AWG |
| Wire Gauge [Min] | 20 AWG | 20 AWG |
M24308/2 Series
DSUB CONN,CRIMP, SOCKET, CADMIUM
| Part | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Finish | Shell Material, Finish | Contact Material | Color | Number of Rows | Current Rating (Amps) | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Connector Type | Termination | Wire Gauge [Min] | Wire Gauge [Max] | Connector Style | Number of Positions | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Interconnect India M24308/2-3F | Housing/Shell (Unthreaded) | -55 °C | 125 °C | Polyester, Glass Filled | Gold | Steel, Yellow Cadmium Plated | Copper Alloy | Natural | 2 | 7.5 A | Signal | B, DB | 3 | UL94 V-0 | Receptacle, Female Sockets | Crimp | 20 AWG | 26 AWG | D-Sub | ||
Amphenol Interconnect India M24308/2-342Z | Housing/Shell (Unthreaded) | -55 °C | 125 °C | Polyester, Glass Filled | Gold | Steel, Yellow Chromate Plated Zinc | Copper Alloy | Natural | 2 | 7.5 A | Signal | DE, E | 1 | UL94 V-0 | Receptacle, Female Sockets | Crimp | 20 AWG | 26 AWG | D-Sub | 9 | |
Amphenol Interconnect India M24308/2-4Z | Housing/Shell (Unthreaded) | -55 °C | 125 °C | Polyester, Glass Filled | Gold | Steel, Yellow Chromate Plated Zinc | Copper Alloy | Natural | 2 | 7.5 A | Signal | UL94 V-0 | Receptacle, Female Sockets | Crimp | 20 AWG | 26 AWG | D-Sub | 37 | 4 (DC, C) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 47.63 | |
| 10 | $ 36.87 | |||
| 25 | $ 33.45 | |||
| 40 | $ 31.87 | |||
| 80 | $ 29.71 | |||
| 230 | $ 26.82 | |||
Description
General part information
M24308/2 Series
25 Position D-Sub Receptacle, Female Sockets Connector
