M24308/2-342Z

Active

Amphenol Interconnect India

DSUB CONN,CRIMP, SOCKET, ZINC

Search across all available documentation for this part.

Active

Amphenol Interconnect India

DSUB CONN,CRIMP, SOCKET, ZINC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

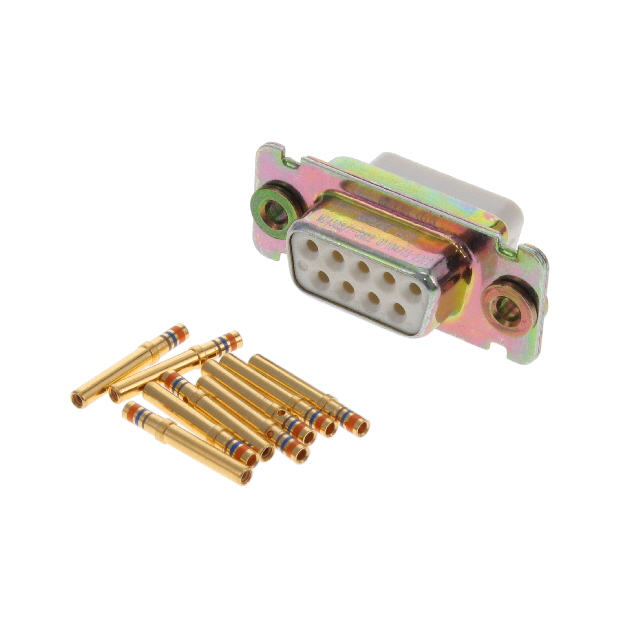

9 Position D-Sub Receptacle, Female Sockets Connector

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	M24308/2-342Z	M24308/2 Series

Color	Natural	Natural
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	7.5 A	7.5 A
Dielectric Material	Polyester, Glass Filled	Polyester, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	9	9 - 37
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Steel, Yellow Chromate Plated Zinc	Yellow Cadmium Plated, Steel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout	-	4 (DC, C)
Shell Size, Connector Layout [custom]	DE, E	DB, B, DE, E
Shell Size, Connector Layout [custom]	1	1 - 3
Termination	Crimp	Crimp
Wire Gauge [Max]	26 AWG	26 AWG
Wire Gauge [Min]	20 AWG	20 AWG

DSUB CONN,CRIMP, SOCKET, CADMIUM

Part	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Contact Finish	Shell Material, Finish	Contact Material	Color	Number of Rows	Current Rating (Amps)	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Material Flammability Rating	Connector Type	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Connector Style	Number of Positions	Shell Size, Connector Layout
Amphenol Interconnect India M24308/2-3F	Housing/Shell (Unthreaded)	-55 °C	125 °C	Polyester, Glass Filled	Gold	Steel, Yellow Cadmium Plated	Copper Alloy	Natural	2	7.5 A	Signal	B, DB	3	UL94 V-0	Receptacle, Female Sockets	Crimp	20 AWG	26 AWG	D-Sub
Amphenol Interconnect India M24308/2-342Z	Housing/Shell (Unthreaded)	-55 °C	125 °C	Polyester, Glass Filled	Gold	Steel, Yellow Chromate Plated Zinc	Copper Alloy	Natural	2	7.5 A	Signal	DE, E	1	UL94 V-0	Receptacle, Female Sockets	Crimp	20 AWG	26 AWG	D-Sub	9
Amphenol Interconnect India M24308/2-4Z	Housing/Shell (Unthreaded)	-55 °C	125 °C	Polyester, Glass Filled	Gold	Steel, Yellow Chromate Plated Zinc	Copper Alloy	Natural	2	7.5 A	Signal			UL94 V-0	Receptacle, Female Sockets	Crimp	20 AWG	26 AWG	D-Sub	37	4 (DC, C)
