796379-1

Obsolete

TE Connectivity AMP Connectors

CONN BACKSH W/CLMP SZ11 5/8-24

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN BACKSH W/CLMP SZ11 5/8-24

Technical Specifications

Parameters and characteristics for this part

Specification	796379-1

Cable Exit	90 °
Cable Opening [custom]	8.36 mm
Cable Opening [custom]	0.329 in
Color	Black
Features	Clamp Screws
For Use With/Related Products	CPC Connectors

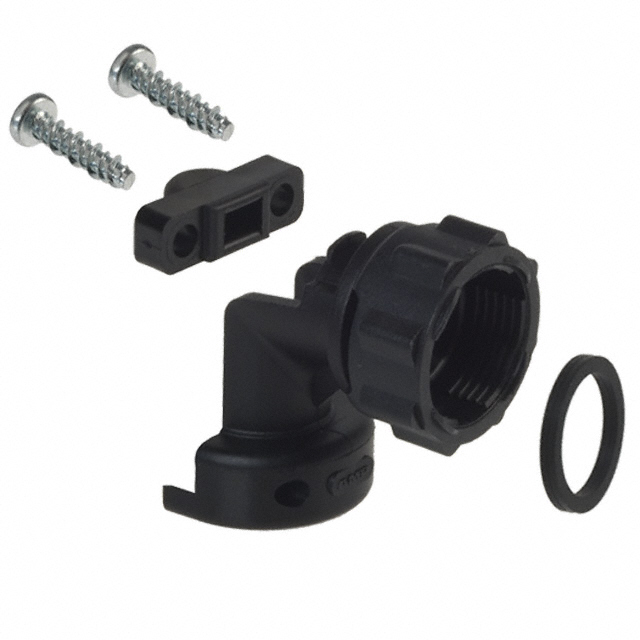

Includes	2 Screws, 2 pc Cable Clamp, 1 Flat Ring
Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Shell Size - Insert	11
Thread Size	5/8-24 UNEF
Type	Backshell, Cable Clamp

CONN BACKSH W/CLMP SZ11 5/8-24

Part	Material Flammability Rating	Cable Exit	Color	Material	Cable Opening [custom]	Cable Opening [custom]	Includes	For Use With/Related Products	Type	Shell Size - Insert	Features	Thread Size
TE Connectivity AMP Connectors 796379-1	UL94 V-0	90 °	Black	Polyamide (PA), Nylon	8.36 mm	0.329 in	1 Flat Ring, 2 pc Cable Clamp, 2 Screws	CPC Connectors	Backshell, Cable Clamp	11	Clamp Screws	5/8-24 UNEF

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Black Connector Backshell, Cable Clamp 5/8-24 UNEF 11
