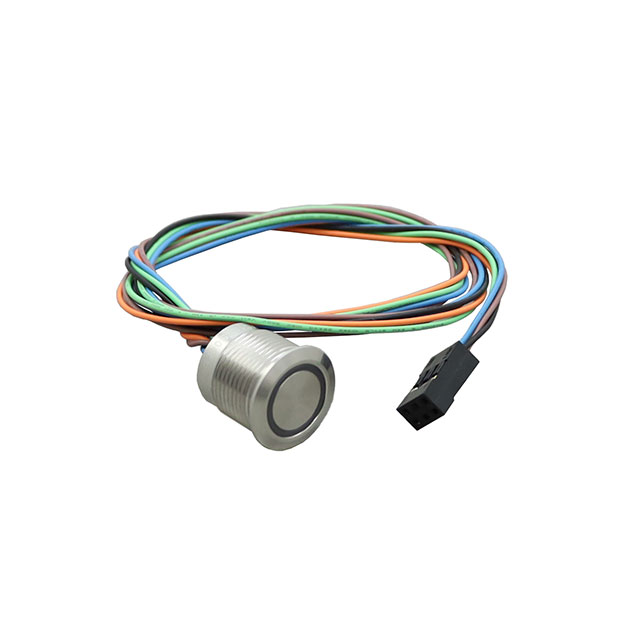

AVC16LS04FE03T5B04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPST 1A

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPST 1A

Technical Specifications

Parameters and characteristics for this part

Specification	AVC16LS04FE03T5B04

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST
Color - Actuator/Cap	Silver
Current Rating (Amps)	1 A
Electrical Life	50000000 Cycles
Illumination Type, Color [custom]	Blue/Green
Illumination Type, Color [custom]	LED
Ingress Protection	IP68 - Dust Tight, Waterproof
Mechanical Life	50000000 Cycles
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-On
Type	Illuminated, Anti-Vandal, Capacitive
Voltage Rating - DC	24 V

Part	Actuator Marking	Panel Cutout Dimensions [diameter]	Ingress Protection	Illumination Type, Color [custom]	Illumination Type, Color [custom]	Voltage Rating - DC	Type	Actuator Type	Mechanical Life	Mounting Type	Color - Actuator/Cap	Circuit	Current Rating (Amps)	Electrical Life	Switch Function	Illumination Type, Color
TE Connectivity Raychem Cable Protection AVC16LS04FE03T5B04	No Marking	16 mm	IP68 - Dust Tight Waterproof	Blue/Green	LED	24 V	Anti-Vandal Capacitive Illuminated	Button Flush Round	50000000 Cycles	Panel Mount Front	Silver	SPST	1 A	50000000 Cycles	Off-On
TE Connectivity Raychem Cable Protection AVC16LAIOFE1DT5B04	No Marking	16 mm	IP68 - Dust Tight Waterproof			24 V	Anti-Vandal Capacitive Illuminated	Button Flush Round	50000000 Cycles	Panel Mount Front	Silver	SPST	1 A	50000000 Cycles	Off-On	Blue Green LED Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST Capacitive, Anti-Vandal, Illuminated Panel Mount, Front
