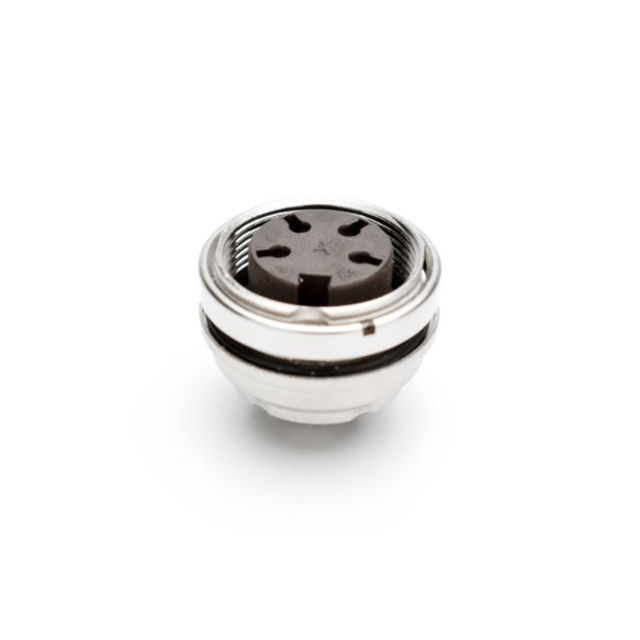

C091 61G004 110 2
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 4P SILVER SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
C091 61G004 110 2
ActiveAmphenol Tuchel Industrial
CONN RCPT FMALE 4P SILVER SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C091 61G004 110 2 |
|---|---|
| Color | Silver |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 10 A |
| Ingress Protection | IP69K, IP65, IP67 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 4 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Die Cast |
| Shell Size - Insert | M16-4 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.28 | |
| 10 | $ 6.55 | |||
| 25 | $ 6.17 | |||
| 50 | $ 6.02 | |||
| 105 | $ 5.86 | |||
| 315 | $ 5.57 | |||
Description
General part information
C091 61G004 Series
4 Position Circular Connector Receptacle, Female Sockets Solder
