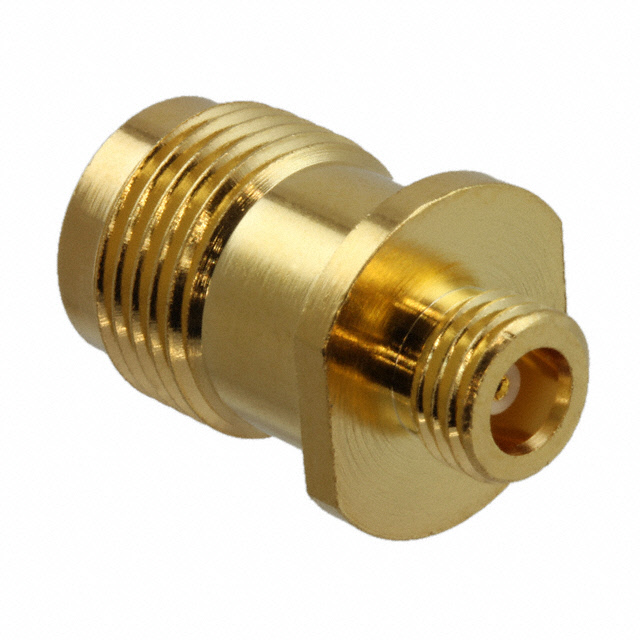

242188-10

Active

Amphenol RF

CONN ADAPT TNC JACK TO MCX JACK

Search across all available documentation for this part.

Active

Amphenol RF

CONN ADAPT TNC JACK TO MCX JACK

Technical Specifications

Parameters and characteristics for this part

Specification	242188-10

Adapter Series	TNC to MCX
Adapter Type	Jack to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	TNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, MCX Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Body Finish	Impedance	Adapter Type	Center Contact Material	Mounting Type	Center Contact Plating	Adapter Series	Body Material	Conversion Type	Style	Operating Temperature [Min]	Operating Temperature [Max]	Convert To (Adapter End)	Convert From (Adapter End)	Center Gender	Dielectric Material	Frequency - Max [Max]
Amphenol RF 242188-10	Gold	50 Ohms	Jack to Jack	Beryllium Copper	Free Hanging (In-Line)	Gold	TNC to MCX	Brass	Between Series	Straight	-65 ░C	165 °C	Female Socket MCX Jack	TNC Jack Female Socket	Female to Female	Polytetrafluoroethylene (PTFE)	6000 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 17.25

General part information

Adapter Coaxial Connector TNC Jack, Female Socket To MCX Jack, Female Socket 50 Ohms
