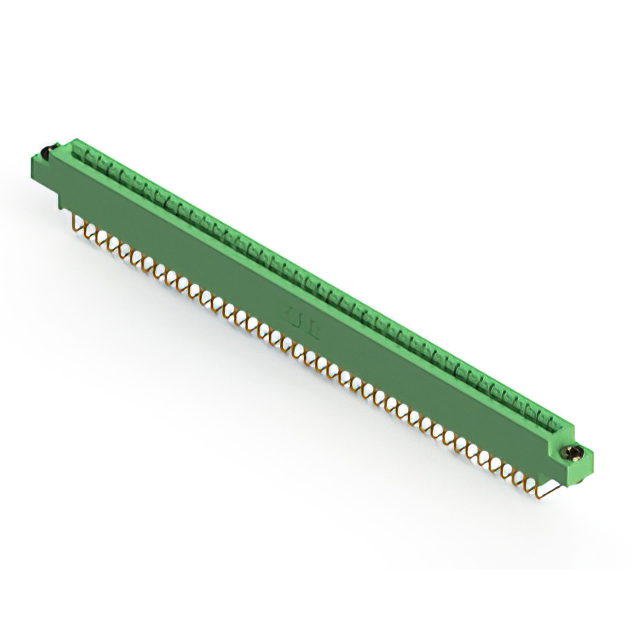

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 41 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN +1

333-041-558-603

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 41 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Drawing EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	333-041-558-603

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, Floating Bobbin
Flange Feature [diameter]	2.95 mm
Flange Feature [diameter]	0.116 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	41
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

333-041 Series

...

Part	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Read Out	Color	Contact Material	Contact Finish	Number of Positions	Gender	Mounting Type	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Pitch [x]	Pitch [x]	Termination Rows	Card Type
EDAC Inc. 333-041-540-104	Cantilever	-40 °C	105 ░C	Wire Wrap	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Single	Green	Copper Alloy	Gold	41	Female	Through Hole	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	0.156 in	3.96 mm	1	Non Specified - Single Edge
EDAC Inc. 333-041-524-603	Cantilever	-40 °C	105 ░C	Solder	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Single	Green	Copper Alloy	Gold	41	Female	Through Hole	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	0.156 in	3.96 mm	1	Non Specified - Single Edge
EDAC Inc. 333-041-558-603	Cantilever	-40 °C	105 ░C	Wire Wrap	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Single	Green	Copper Alloy	Gold	41	Female	Through Hole Right Angle	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	0.156 in	3.96 mm	1	Non Specified - Single Edge
EDAC Inc. 333-041-523-107	Cantilever	-40 °C	105 ░C	Solder	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Single	Green	Copper Alloy	Gold	41	Female	Through Hole		Flush Mount M3 Threaded Insert Top Opening		0.156 in	3.96 mm	1	Non Specified - Single Edge
EDAC Inc. 333-041-541-102	Cantilever	-40 °C	105 ░C	Wire Wrap	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Single	Green	Copper Alloy	Gold	41	Female	Through Hole	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "	0.156 in	3.96 mm	1	Non Specified - Single Edge
EDAC Inc. 333-041-542-608	Cantilever	-40 °C	105 ░C	Wire Wrap	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Single	Green	Copper Alloy	Gold	41	Female	Through Hole		4-40 Threaded Insert Top Mount Opening		0.156 in	3.96 mm	1	Non Specified - Single Edge
EDAC Inc. 333-041-542-607	Cantilever	-40 °C	105 ░C	Wire Wrap	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Single	Green	Copper Alloy	Gold	41	Female	Through Hole		M3 Threaded Insert Top Mount Opening		0.156 in	3.96 mm	1	Non Specified - Single Edge
EDAC Inc. 333-041-520-103	Cantilever	-40 °C	105 ░C	Solder	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Single	Green	Copper Alloy	Gold	41	Female	Through Hole	2.95 mm	Floating Bobbin Flush Mount	0.116 in	0.156 in	3.96 mm	1	Non Specified - Single Edge
EDAC Inc. 333-041-523-603	Cantilever	-40 °C	105 ░C	Solder	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Single	Green	Copper Alloy	Gold	41	Female	Through Hole	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in	0.156 in	3.96 mm	1	Non Specified - Single Edge
EDAC Inc. 333-041-520-608	Cantilever	-40 °C	105 ░C	Solder	10 Áin	0.25 Ám	Polyester Thermoplastic	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Single	Green	Copper Alloy	Gold	41	Female	Through Hole		4-40 Threaded Insert Top Mount Opening		0.156 in	3.96 mm	1	Non Specified - Single Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 14.89
Newark	Each	1	$ 14.94
		100	$ 9.47
		250	$ 8.52
		500	$ 7.94
		1000	$ 6.68

Description

General part information

333-041 Series

41 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
