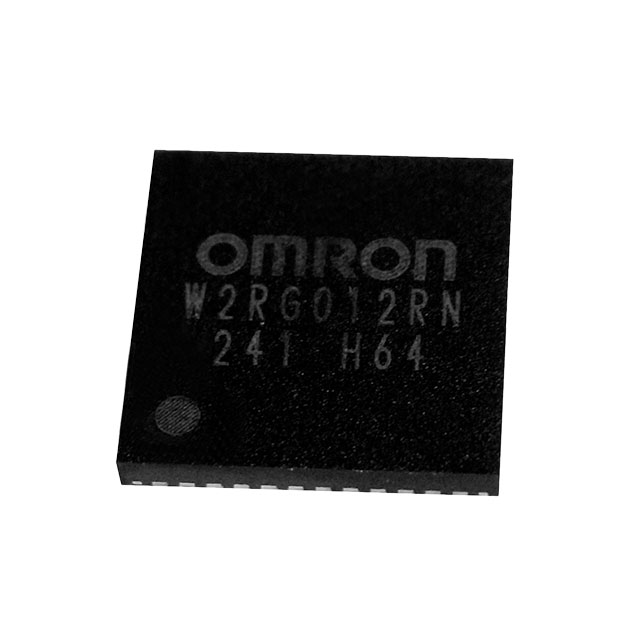

W2RG012RN
ObsoleteOmron Electronics Inc-EMC Div
IC LED DRVR LIN I2C 80MA 48QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W2RG012RN
ObsoleteOmron Electronics Inc-EMC Div
IC LED DRVR LIN I2C 80MA 48QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W2RG012RN |
|---|---|
| Current - Output / Channel | 80 mA |
| Dimming | I2C |
| Internal Switch(s) | True |
| Mounting Type | Surface Mount |
| Number of Outputs | 24 |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -20 °C |
| Package / Case | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (7x7) |
| Type | Linear |
| Voltage - Supply (Max) | 5.5 V |
| Voltage - Supply (Min) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.25 | |
Description
General part information
W2RG012 Series
LED Driver IC 24 Output Linear I2C Dimming 80mA 48-QFN (7x7)
