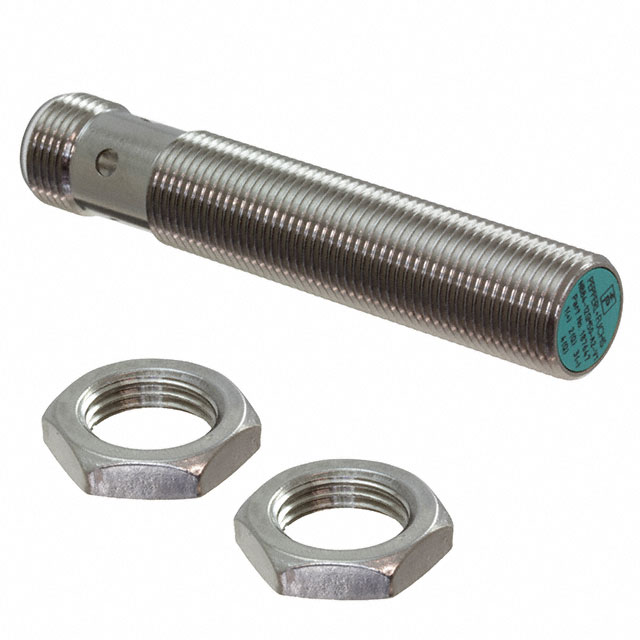

NBB4-12GM50-A2-V1
ActivePEPPERL+FUCHS
INDUCTIVE DC ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NBB4-12GM50-A2-V1
ActivePEPPERL+FUCHS
INDUCTIVE DC ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NBB4-12GM50-A2-V1 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | 4-Wire, PNP-NC/NO |
| Package / Case | Cylinder, Threaded - M12 |
| Sensing Distance | 4 mm |
| Sensing Distance | 0.157 in |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
NBB4-12 Series
| Part | Ingress Protection | Material - Body | Shielding | Termination Style | Indicator [custom] | Output Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Sensing Distance | Sensing Distance | Sensor Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PEPPERL+FUCHS | IP67 | Nickel-Plated Brass | Unshielded | Connector | LED | SCR-NO 2-Wire | 250 VAC 300 VDC | 20 VDC 20 VAC | Cylinder Threaded - M12 | 70 °C | -25 °C | 4 mm | 0.157 in | Inductive |
PEPPERL+FUCHS | IP67 | Nickel-Plated Brass | Unshielded | Connector | LED | PNP-NO 3-Wire | 30 VDC | 10 VDC | Cylinder Threaded - M12 | 70 °C | -40 °C | 4 mm | 0.157 in | Inductive |
PEPPERL+FUCHS | IP67 | Nickel-Plated Brass | Unshielded | Connector | LED | 4-Wire PNP-NC/NO | 30 VDC | 10 VDC | Cylinder Threaded - M12 | 70 °C | -25 °C | 4 mm | 0.157 in | Inductive |
PEPPERL+FUCHS | IP68 IP69K | Nickel-Plated Brass | Unshielded | Connector | LED | PNP-NO 3-Wire | 60 V | 5 V | Cylinder Threaded - M12 | 85 °C | -40 °C | 4 mm | 0.157 in | Inductive |
PEPPERL+FUCHS | IP67 | Nickel-Plated Brass | Unshielded | Connector | LED | NPN-NO 3-Wire | 30 VDC | 10 VDC | Cylinder Threaded - M12 | 70 °C | -25 °C | 4 mm | 0.157 in | Inductive |
PEPPERL+FUCHS | IP67 | Nickel-Plated Brass | Unshielded | Cable | LED | PNP-NO 3-Wire | 30 VDC | 10 VDC | Cylinder Threaded - M12 | 70 °C | -25 °C | 4 mm | 0.157 in | Inductive |
PEPPERL+FUCHS | IP67 | Nickel-Plated Brass | Unshielded | Connector | LED | NPN-NC/NO 4-Wire | 30 VDC | 10 VDC | Cylinder Threaded - M12 | 70 °C | -25 °C | 4 mm | 0.157 in | Inductive |
PEPPERL+FUCHS | IP68 IP69K | Nickel-Plated Brass | Unshielded | Cable | LED | PNP-NC 3-Wire | 60 V | 5 V | Cylinder Threaded - M12 | 85 °C | -40 °C | 4 mm | 0.157 in | Inductive |
PEPPERL+FUCHS | IP67 | Nickel-Plated Brass | Unshielded | Cable | LED | NPN-NO 3-Wire | 30 VDC | 10 VDC | Cylinder Threaded - M12 | 70 °C | -25 °C | 4 mm | 0.157 in | Inductive |
PEPPERL+FUCHS | IP67 | Nickel-Plated Brass | Unshielded | Connector | LED | PNP-NC 3-Wire | 30 VDC | 10 VDC | Cylinder Threaded - M12 | 70 °C | -25 °C | 4 mm | 0.157 in | Inductive |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NBB4-12 Series
INDUCTIVE DC ROHS COMPLIANT: YES
