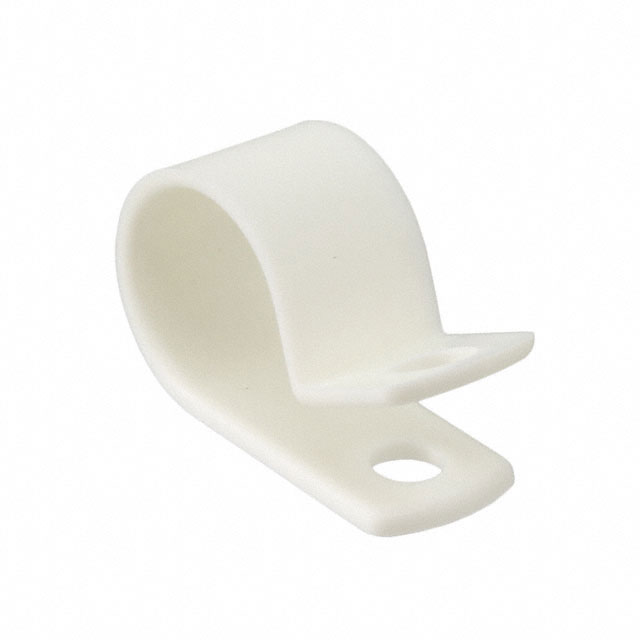

N-9B-19

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, 14.3 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 12.7 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SCREW MOUNT CABLE CLAMP, 14.3 MM, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 12.7 MM

Technical Specifications

Parameters and characteristics for this part

Specification	N-9B-19

Bundle Center to Mounting Center [x]	15.09 mm
Bundle Center to Mounting Center [x]	0.594 in
Color	Natural
Features	Flame Retardant
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Material Thickness	0.063 in
Material Thickness	1.6 mm
Mounting Type	Fastener
Opening Size [custom]	0.563 in
Opening Size [custom]	14.3 mm
Panel Hole Size	5.18 mm
Panel Hole Size [diameter]	0.204 in
Screw Size	M5
Screw Size	#10
Type	Clamp, P-Type

Part	Screw Size	Screw Size	Color	Material Thickness	Material Thickness	Material	Mounting Type	Opening Size [custom]	Opening Size [custom]	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Panel Hole Size [diameter]	Panel Hole Size	Material Flammability Rating	Type	Features
Essentra Access Solutions N-9B	M5	#10	Natural	0.063 in	1.6 mm	Polyamide (PA66) Nylon 6/6	Fastener	0.563 in	14.3 mm	15.09 mm	0.594 in	0.204 in	5.18 mm	UL94 V-2	Clamp P-Type
Essentra Access Solutions N-9B-BK	M5	#10	Black	0.063 in	1.6 mm	Polyamide (PA66) Nylon 6/6	Fastener	0.563 in	14.3 mm	15.09 mm	0.594 in	0.204 in	5.18 mm	UL94 V-2	Clamp P-Type
Essentra Access Solutions N-9B-19	M5	#10	Natural	0.063 in	1.6 mm	Polyamide (PA66) Nylon 6/6	Fastener	0.563 in	14.3 mm	15.09 mm	0.594 in	0.204 in	5.18 mm	UL94 V-0	Clamp P-Type	Flame Retardant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.16
Newark	Each	1	$ 0.18
		50000	$ 0.15

General part information

Cable Clamp, P-Type Natural Fastener 0.563" (14.30mm)
