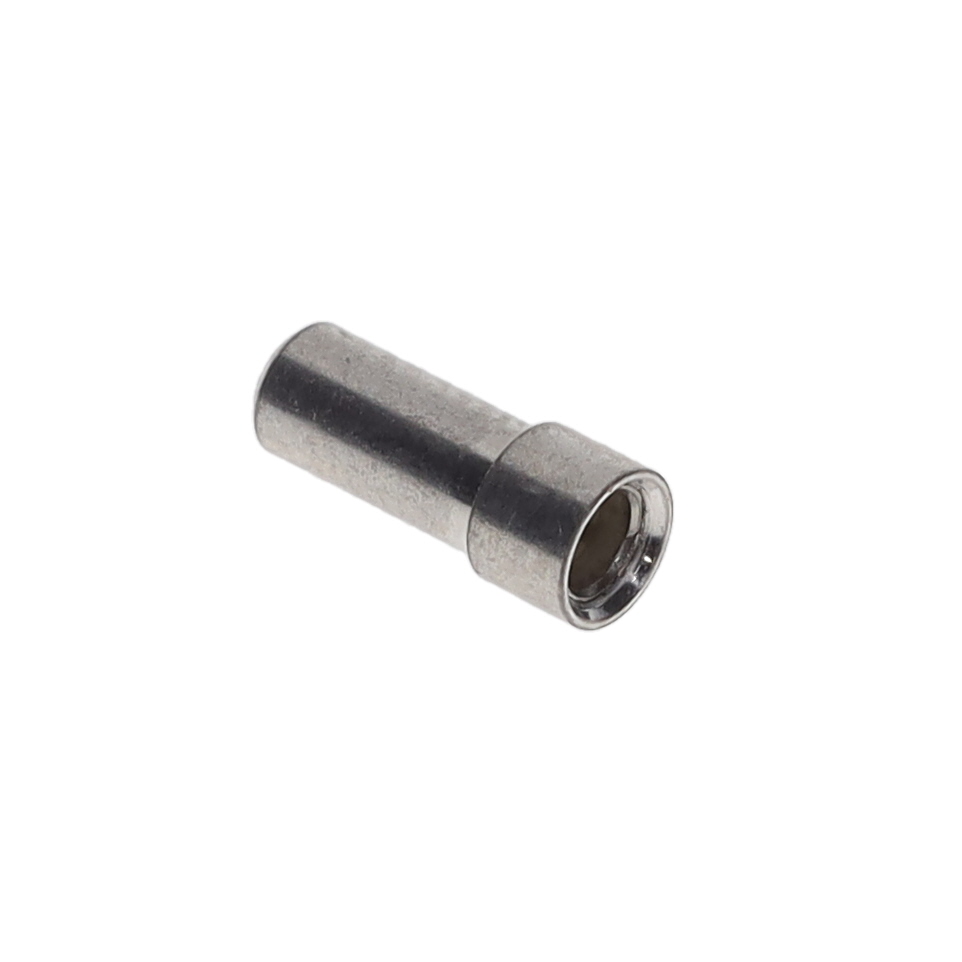

8829-0-15-01-23-01-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Search across all available documentation for this part.
8829-0-15-01-23-01-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8829-0-15-01-23-01-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.065 in |
| Accepts Pin Diameter [Max] | 1.65 mm |
| Accepts Pin Diameter [Min] | 0.045 in |
| Accepts Pin Diameter [Min] | 1.14 mm |
| Contact Finish | Tin-Lead |
| Contact Finish Thickness | 200 Áin |
| Contact Finish Thickness | 5.08 Ám |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 0.12 in |
| Flange Diameter [diameter] | 3.05 mm |
| Length - Overall [x] | 0.296 in |
| Length - Overall [x] | 7.52 mm |
| Mounting Hole Diameter [diameter] | 0.102 in |
| Mounting Hole Diameter [diameter] | 2.59 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pin Hole Diameter [diameter] | 0.088 in |
| Pin Hole Diameter [diameter] | 2.24 mm |
| Socket Depth | 6.22 mm |
| Socket Depth | 0.245 in |
| Tail Type | No Tail |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.41 | |
| 10 | $ 1.19 | |||
| 100 | $ 1.07 | |||
| 1000 | $ 0.78 | |||
| 5000 | $ 0.68 | |||
| 10000 | $ 0.65 | |||
Description
General part information
8829-0 Series
Pin Receptacle Connector 0.045" ~ 0.065" (1.14mm ~ 1.65mm) No Tail Solder
