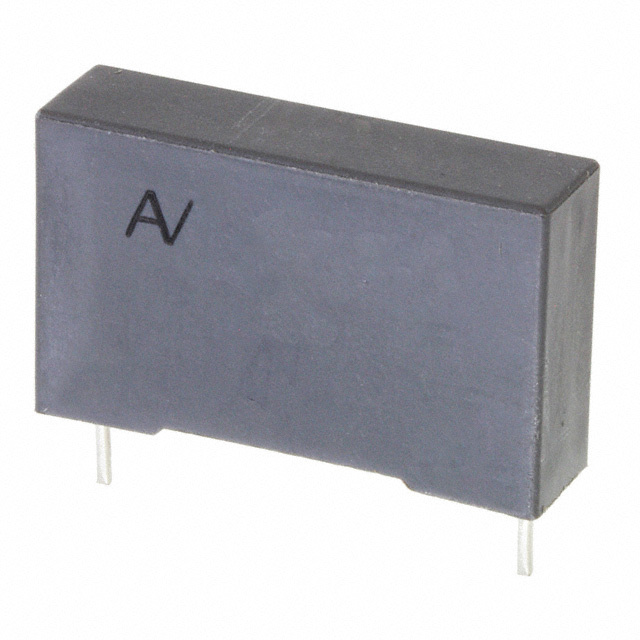

R75IN41004040J

Active

KEMET

CAP FILM 1UF 250V PP 5%( 26.5 X 7 X 16MM) RADIAL PLASTIC RECTANGULAR CAN 22.5MM 0.008 OHM 105°C BAG AUTOMOTIVE AEC-Q200

Search across all available documentation for this part.

Active

KEMET

CAP FILM 1UF 250V PP 5%( 26.5 X 7 X 16MM) RADIAL PLASTIC RECTANGULAR CAN 22.5MM 0.008 OHM 105°C BAG AUTOMOTIVE AEC-Q200

Technical Specifications

Parameters and characteristics for this part

Specification	R75IN41004040J

Applications	Automotive, High Frequency, Switching, High Pulse, DV/DT
Capacitance	1 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max]	16.1 mm
Height - Seated (Max) [Max]	0.634 in
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	1.043 in
Size / Dimension [x]	26.5 mm
Size / Dimension [y]	7 mm
Size / Dimension [y]	0.276 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	160 V
Voltage Rating - DC	250 V

Part	Termination	Voltage Rating - DC	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Voltage Rating - AC	Ratings	Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Capacitance	Applications	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R75IN41004040J	PC Pins	250 V	22.5 mm	0.886 in	16.1 mm	0.634 in	Through Hole	160 V	AEC-Q200	5 %	7 mm	0.276 in	1.043 in	26.5 mm	Metallized Polypropylene (PP)	105 ░C	-55 °C	Radial	1 µF	Automotive High Frequency Switching High Pulse DV/DT
KEMET R75IN410050H4J	PC Pins	250 V	22.5 mm	0.886 in	16.1 mm	0.634 in	Through Hole	160 V	AEC-Q200	5 %	7 mm	0.276 in	1.043 in	26.5 mm	Metallized Polypropylene (PP)	125 °C	-55 °C	Radial	1 µF	Automotive High Frequency Switching High Pulse DV/DT	8 mOhms
KEMET R75IN433050H4J	PC Pins	250 V	22.5 mm	0.886 in			Through Hole	160 V	AEC-Q200	5 %	13 mm	0.512 in	1.043 in	26.5 mm	Metallized Polypropylene (PP)	125 °C	-55 °C	Radial	3.3 µF	Automotive High Frequency Switching High Pulse DV/DT	7.2 mOhms	0.87 in	22.1 mm
KEMET R75IN33305030J	PC Pins	250 V	22.5 mm	0.886 in	15.1 mm	0.594 in	Through Hole	160 V	AEC-Q200	5 %	6 mm	0.236 in	1.043 in	26.5 mm	Metallized Polypropylene (PP)	105 ░C	-55 °C	Radial	0.33 µF	Automotive High Frequency Switching High Pulse DV/DT	9.6 mOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial
