9222 004500

Active

Belden Inc.

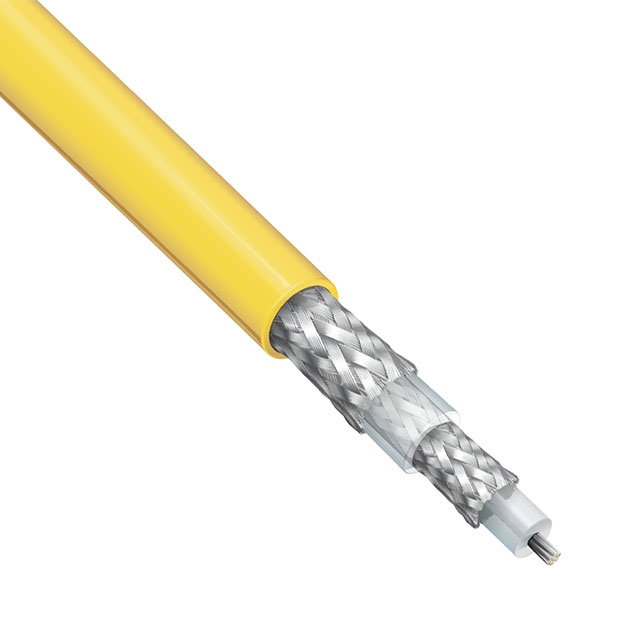

TRIAXIAL CABLE, DOUBLE BRAID SHIELD, RG58A, 20 AWG, 50 OHM, 498.69 FT, 152.4 M ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Belden Inc.

TRIAXIAL CABLE, DOUBLE BRAID SHIELD, RG58A, 20 AWG, 50 OHM, 498.69 FT, 152.4 M ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	9222 004500

Cable Group	RG-58A
Cable Type	Coaxial
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	28 AWG
Dielectric Diameter	3.05 mm
Dielectric Diameter [diameter]	0.12 in
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	0.241 in
Jacket (Insulation) Diameter [diameter]	6.12 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Yellow
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Braid
Wire Gauge	20 AWG

Part	Dielectric Diameter	Dielectric Diameter [diameter]	Shield Material	Conductor Strand [custom]	Conductor Strand [custom]	Cable Group	Conductor Material	Cable Type	Jacket Color	Jacket (Insulation) Material	Impedance	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Wire Gauge	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]
Belden Inc. 9222 004500	3.05 mm	0.12 in	Copper Tinned	7	28 AWG	RG-58A	Copper Tinned	Coaxial	Yellow	Poly-Vinyl Chloride (PVC)	50 Ohms	95 %	0.241 in	6.12 mm	Braid	20 AWG	152.4 m	6000 in	-40 °C	75 ░C
Belden Inc. 9222 004U500	3.05 mm	0.12 in	Copper Tinned	7	28 AWG	RG-58A	Copper Tinned	Triaxial	Yellow	Poly-Vinyl Chloride (PVC)	50 Ohms	95 %	0.241 in	6.12 mm	Braid	20 AWG	152.4 m	6000 in	-40 °C	75 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Cable 20 AWG RG-58A 500.0' (152.40m) 50 Ohms
