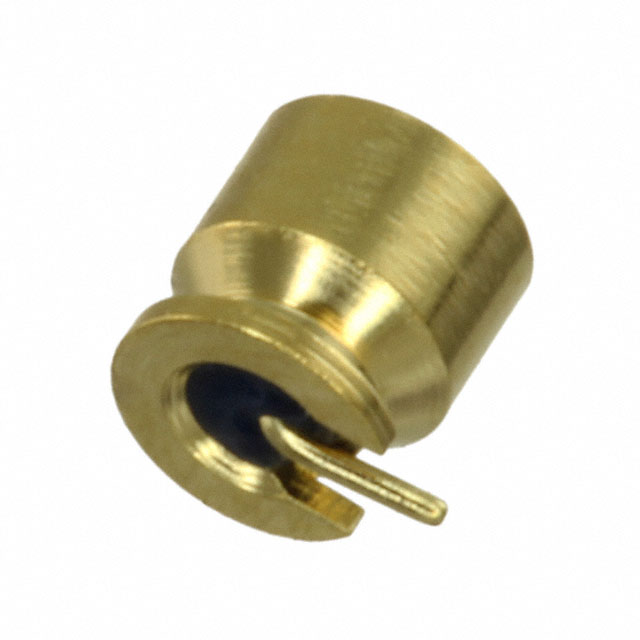

W1S143-40ML5

Active

Rosenberger

CONN WSMP PLUG STR 50OHM SMD

Search across all available documentation for this part.

Active

Rosenberger

CONN WSMP PLUG STR 50OHM SMD

Technical Specifications

Parameters and characteristics for this part

CONN WSMP PLUG STR 50OHM SMD

Part	Mounting Type	Mating Cycles	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Connector Style	Impedance	Body Finish	Center Contact Material	Frequency - Max [Max]	Number of Ports	Contact Termination	Connector Type	Center Contact Plating	Shield Termination	Body Material	Features	Housing Color
Rosenberger W1S143-40ML5	Surface Mount	500	Snap-On	165 °C	-55 °C	WSMP	50 Ohms	Gold	Beryllium Copper	80 GHz	1	Solder	Male Pin, Plug	Gold	Solder	Cobalt, Iron, Nickel	Smooth Bore	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

WSMP Connector Plug, Male Pin 50 Ohms Surface Mount Solder
