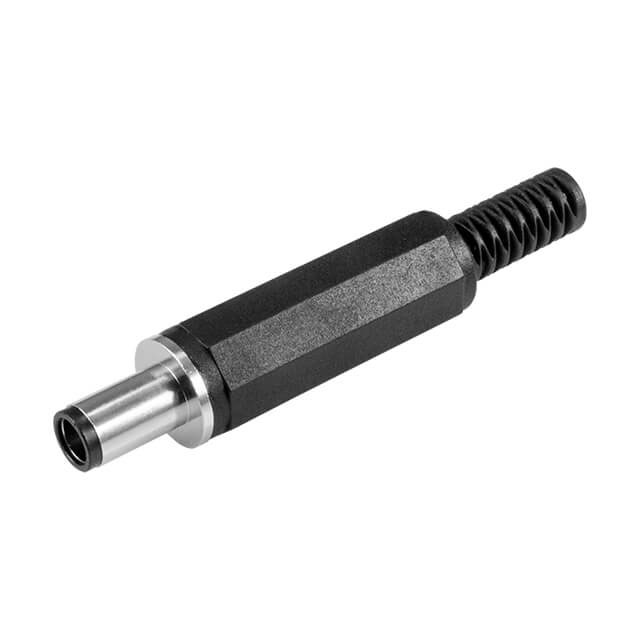

PP-065574-M
ActiveCUI Devices
CONN DC POWER PL 1 POS SOLDER LUG ST CABLE MOUNT 1 TERMINAL 1 PORT BULK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PP-065574-M
ActiveCUI Devices
CONN DC POWER PL 1 POS SOLDER LUG ST CABLE MOUNT 1 TERMINAL 1 PORT BULK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PP-065574-M |
|---|---|
| Actual Diameter [diameter] | 0.291 in, 0.024 in |
| Actual Diameter [diameter] | 7.4 mm, 0.6 mm |
| Body Color | Silver, Black |
| Body Material | Brass |
| Connector Type | Plug |
| Contact Material | Brass |
| Contact Material - Plating [custom] | Nickel |
| Features | Cover, Strain Relief |
| Gender | Male |
| Industry Recognized Mating Diameter [diameter] | 0.6 mm, 5.5 mm, 7.4 mm |
| Industry Recognized Mating Diameter [diameter] | 0.024 in, 0.217 ", 0.291 in |
| Insulation Color | Black |
| Internal Switch(s) | False |
| Material Flammability Rating | UL94 HB |
| Mating Length/Depth [x] | 0.504 in |
| Mating Length/Depth [x] | 12.8 mm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 2 |
| Number of Positions/Contacts [custom] | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Voltage - Rated | 24 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 4.40 | |
| 10 | $ 3.99 | |||
| 25 | $ 3.78 | |||
| 50 | $ 3.69 | |||
| 100 | $ 3.52 | |||
| 250 | $ 3.08 | |||
| 500 | $ 2.99 | |||
| 1000 | $ 2.55 | |||
| 2500 | $ 2.38 | |||
Description
General part information
PP-065574 Series
Power Barrel Connector Plug 0.60mm ID (0.024"), 5.50mm ID (0.217"), 7.40mm OD (0.291") Free Hanging (In-Line)
