UHDBNC47CR

Active

Switchcraft Inc.

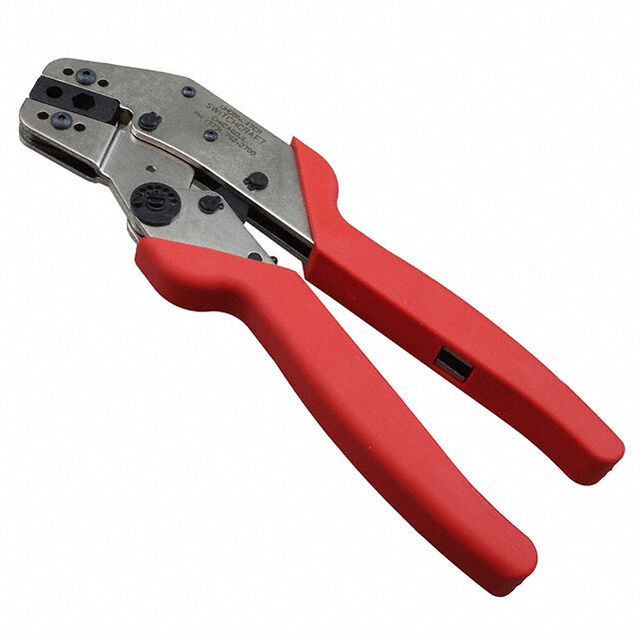

RF CONNECTORS / COAXIAL CONNECTORS CRIMP TOOL FOR UHDBNC47

Search across all available documentation for this part.

Active

Switchcraft Inc.

RF CONNECTORS / COAXIAL CONNECTORS CRIMP TOOL FOR UHDBNC47

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UHDBNC47CR	UHDBNC Series

Body Finish	-	Nickel
Body Material	-	Brass
Cable Group	-	Belden 1855A, Belden 1505A
Center Contact Material	-	Brass
Center Contact Plating	-	Gold
Connector Style	-	BNC, UHD
Connector Type	-	Male Pin, Plug
Contact Termination	-	Crimp
Fastening Type	-	Bayonet Lock
For Use With/Related Products	Coaxial, RF - BNC	Coaxial, RF - BNC
Frequency - Max	-	20 - 24 GHz
Housing Color	-	Silver
Includes	-	1 Ferrule, 1 Contact, 1 Connector
Mounting Type	-	Free Hanging (In-Line)
Number of Ports	-	1
Ratcheting	False	False
Shield Termination	-	Crimp
Tool Type	Hand Crimper	Hand Crimper
Wire Entry Location	Side Entry	Side Entry

UHD BNC FOR 1855A CABLE

Part	Center Contact Plating	Fastening Type	Includes	Shield Termination	Mounting Type	Contact Termination	Body Finish	Cable Group	Frequency - Max [Max]	Housing Color	Center Contact Material	Connector Type	Connector Style	Number of Ports	Body Material	Tool Type	For Use With/Related Products	Wire Entry Location
Switchcraft Inc. UHDBNC55	Gold	Bayonet Lock	1 Connector, 1 Contact, 1 Ferrule	Crimp	Free Hanging (In-Line)	Crimp	Nickel	Belden 1855A	24 GHz	Silver	Brass	Male Pin, Plug	BNC, UHD	1	Brass
Switchcraft Inc. UHDBNC47CR																Hand Crimper	Coaxial, RF - BNC	Side Entry
Switchcraft Inc. UHDBNC05	Gold	Bayonet Lock	1 Connector, 1 Contact, 1 Ferrule	Crimp	Free Hanging (In-Line)	Crimp	Nickel	Belden 1505A	24 GHz	Silver	Brass	Male Pin, Plug	BNC, UHD	1	Brass
Switchcraft Inc. UHDBNC47	Gold	Bayonet Lock	1 Connector, 1 Contact, 1 Ferrule	Crimp	Free Hanging (In-Line)	Crimp	Nickel		20 GHz	Silver	Brass	Male Pin, Plug	BNC, UHD	1	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 767.75
Sager	N/A	1	$ 998.37
		3	$ 985.73

General part information

Hand Crimper Tool Coaxial, RF - BNC
