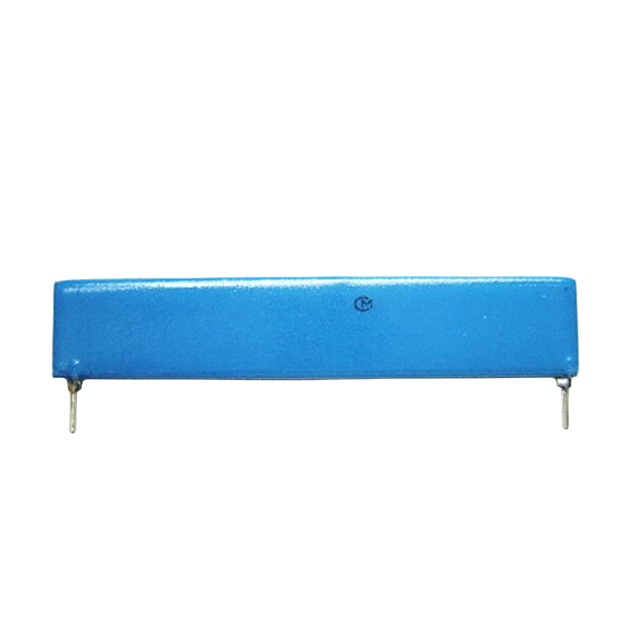

MHR0844SA506F70

Active

Murata Power Solutions Inc.

THICK FILM RESISTORS - THROUGH HOLE

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

THICK FILM RESISTORS - THROUGH HOLE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thick Film Resistors - Through Hole

Technical documentation and resources

Part	Power (Watts)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Tolerance	Number of Terminations	Composition
Murata Power Solutions Inc. MHR0844SA107F70	2.5 W	0.394 in	10 mm	Radial	100 MOhms	1.811 "	2.5 mm	0.098 in	46 mm	125 °C	-40 °C	High Voltage	1 %	2	Thick Film
Murata Power Solutions Inc. MHR0844SA506F70	2.5 W	0.394 in	10 mm	Radial	50 MOhms	1.811 "	2.5 mm	0.098 in	46 mm	125 °C	-40 °C	High Voltage	1 %	2	Thick Film
Murata Power Solutions Inc. MHR0844SA507F70	2.5 W	0.394 in	10 mm	Radial	500 MOhms	1.811 "	2.5 mm	0.098 in	46 mm	125 °C	-40 °C	High Voltage	1 %	2	Thick Film
Murata Power Solutions Inc. MHR0844SA108G70	2.5 W	0.394 in	10 mm	Radial	1 GOhms	1.811 "	2.5 mm	0.098 in	46 mm	125 °C	-40 °C	High Voltage	2 %	2	Thick Film
