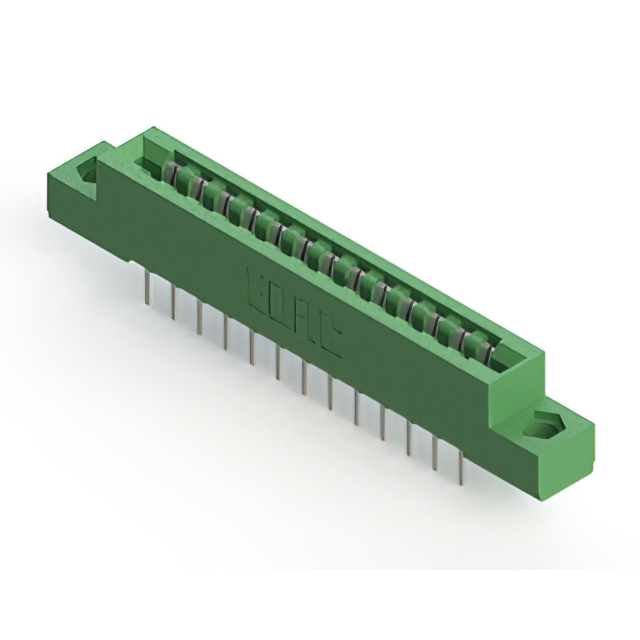

807-026-424-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 26POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

807-026-424-204

Active

EDAC Inc.

CONN EDGE DUAL FMALE 26POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	807-026-424-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	26
Number of Positions/Bay/Row [custom]	13
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

807-026 Series

...

Part	Contact Type	Contact Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Color	Termination Rows	Card Type	Number of Rows	Contact Finish	Mounting Type	Pitch [x]	Pitch [x]	Termination	Read Out	Gender	Features	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature
EDAC Inc. 807-026-456-203	Semi Bellows	Copper Alloy	26	125 °C	-40 °C	Green	2	Non Specified - Dual Edge	2	Tin	Board Edge Straddle Mount	0.156 in	3.96 mm	Solder	Dual	Female	Card Extender	1.37 mm	0.054 "	1.78 mm	0.07 in	13	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Diallyl Phthalate (DAP)
EDAC Inc. 807-026-545-107	Semi Bellows	Copper Alloy	26	125 °C	-40 °C	Green	1	Non Specified - Single Edge	1	Gold	Through Hole	0.156 in	3.96 mm	Wire Wrap	Single	Female		1.37 mm	0.054 "	1.78 mm	0.07 in	26		Flush Mount M3 Threaded Insert Top Opening		Diallyl Phthalate (DAP)	10 Áin	0.25 Ám
EDAC Inc. 807-026-424-204	Semi Bellows	Copper Alloy	26	125 °C	-40 °C	Green	2	Non Specified - Dual Edge	2	Tin	Through Hole	0.156 in	3.96 mm	Solder	Dual	Female		1.37 mm	0.054 "	1.78 mm	0.07 in	13	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Diallyl Phthalate (DAP)
EDAC Inc. 807-026-556-201	Semi Bellows	Copper Alloy	26	125 °C	-40 °C	Green	2	Non Specified - Dual Edge	2	Gold	Board Edge Straddle Mount	0.156 in	3.96 mm	Solder	Dual	Female	Card Extender	1.37 mm	0.054 "	1.78 mm	0.07 in	13				Diallyl Phthalate (DAP)	10 Áin	0.25 Ám
EDAC Inc. 807-026-542-212	Semi Bellows	Copper Alloy	26	125 °C	-40 °C	Green	2	Non Specified - Dual Edge	2	Gold	Through Hole	0.156 in	3.96 mm	Wire Wrap	Dual	Female		1.37 mm	0.054 "	1.78 mm	0.07 in	13		Side Mount Opening Unthreaded		Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 807-026-459-103	Semi Bellows	Copper Alloy	26	125 °C	-40 °C	Green	1	Non Specified - Single Edge	1	Tin	Through Hole Right Angle	0.156 in	3.96 mm	Solder	Single	Female		1.37 mm	0.054 "	1.78 mm	0.07 in	26	0.116 in	Floating Bobbin Flush Mount	2.95 mm	Diallyl Phthalate (DAP)
EDAC Inc. 807-026-540-201	Semi Bellows	Copper Alloy	26	125 °C	-40 °C	Green	2	Non Specified - Dual Edge	2	Gold	Through Hole	0.156 in	3.96 mm	Wire Wrap	Dual	Female		1.37 mm	0.054 "	1.78 mm	0.07 in	13				Diallyl Phthalate (DAP)	10 Áin	0.25 Ám
EDAC Inc. 807-026-505-104	Semi Bellows	Copper Alloy	26	125 °C	-40 °C	Green	1	Non Specified - Single Edge	1	Gold	Through Hole	0.156 in	3.96 mm	Solder Eyelet(s)	Single	Female		1.37 mm	0.054 "	1.78 mm	0.07 in	26	0.156 in	Flush Mount Top Opening Unthreaded	3.96 mm	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám
EDAC Inc. 807-026-554-112	Semi Bellows	Copper Alloy	52	125 °C	-40 °C	Green	1	Non Specified - Dual Edge	2	Gold	Through Hole Right Angle	0.156 in	3.96 mm	Solder	Dual	Female		1.37 mm	0.054 "	1.78 mm	0.07 in	26		Side Mount Opening Unthreaded		Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 807-026-420-202	Semi Bellows	Copper Alloy	26	125 °C	-40 °C	Green	2	Non Specified - Dual Edge	2	Tin	Through Hole	0.156 in	3.96 mm	Solder	Dual	Female		1.37 mm	0.054 "	1.78 mm	0.07 in	13	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Diallyl Phthalate (DAP)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 55.90
LCSC	Piece	1	$ 134.93
		200	$ 53.84
		500	$ 52.04
		1000	$ 51.15

Description

General part information

807-026 Series

26 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
