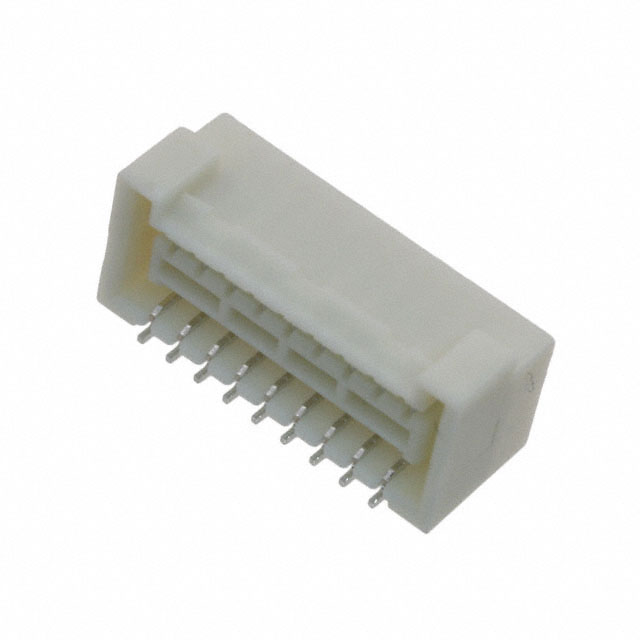

SM18B-ZPDSS-TF

Active

JST Sales America Inc.

CONN HEADER SMD R/A 18POS 1.5MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER SMD R/A 18POS 1.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	SM18B-ZPDSS-TF

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Outer Shroud Contact
Current Rating (Amps)	2 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.309 in
Insulation Height	7.85 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

Part	Number of Positions	Mounting Type	Termination	Insulation Color	Number of Positions Loaded	Contact Shape	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Insulation Height	Insulation Height	Contact Finish - Post	Number of Rows	Current Rating (Amps)	Voltage Rating	Contact Material	Style	Material Flammability Rating	Connector Type	Contact Type	Shrouding
JST Sales America Inc. SM18B-ZPDSS-TF	18	Surface Mount Right Angle	Solder	Natural	All	Rectangular	Locking Ramp	-25 °C	85 °C	Nylon Polyamide (PA)	0.309 in	7.85 mm	Tin	2	2 A	100 V	Copper Alloy	Board to Cable/Wire	UL94 V-0	Header	Outer Shroud Contact	Shrouded - 4 Wall

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount, Right Angle 18 position 0.059" (1.50mm)
