195-015-213L001

Active

MH Connectors

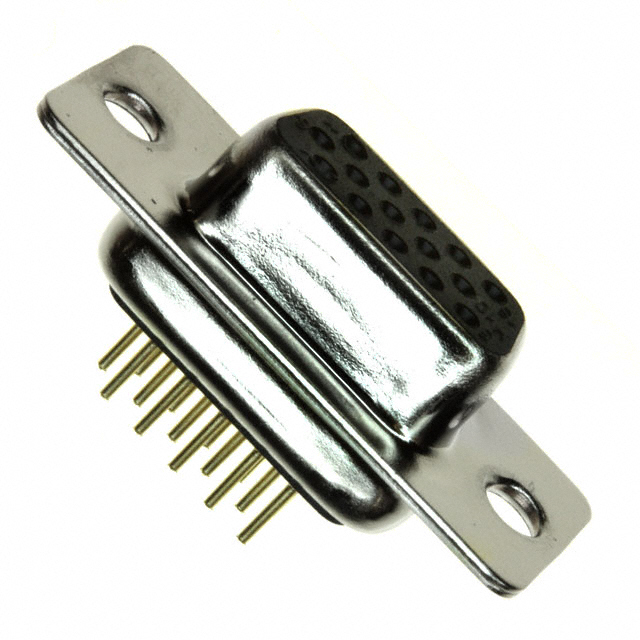

CONN D-SUB HD RCPT 15POS PNL MNT

Search across all available documentation for this part.

Active

MH Connectors

CONN D-SUB HD RCPT 15POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	195-015-213L001

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Phosphor Bronze
Contact Type	Signal
Current Rating (Amps)	2 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

Part	Contact Form	Current Rating (Amps)	Features	Color	Termination	Contact Finish Thickness	Mounting Type	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Material, Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Number of Positions	Contact Finish	Connector Type	Contact Material	Number of Rows	Material Flammability Rating	Connector Style	Flange Feature
MH Connectors 195-015-213L001	Stamped	2 A	Shielded	Black	Solder	Flash	Panel Mount Through Hole	Polybutylene Terephthalate (PBT)	DE E	1	High Density	Nickel Plated Steel	-55 °C	125 °C	Signal	15	Gold	Receptacle Female Sockets	Phosphor Bronze	3	UL94 V-0	D-Sub High Density	Housing/Shell (Unthreaded)
MH Connectors 195-015-213L031	Stamped	2 A	Shielded	Black	Solder	Flash	Panel Mount Through Hole	Polybutylene Terephthalate (PBT)	DE E	1	High Density	Nickel Plated Steel	-55 °C	125 °C	Signal	15	Gold	Receptacle Female Sockets	Phosphor Bronze	3	UL94 V-0	D-Sub High Density	Female Screwlock (4-40) Mating Side
MH Connectors 195-015-213-001	Stamped	2 A		Black	Solder	Flash	Panel Mount Through Hole	Polyester Thermoplastic	DE E	1	High Density	Nickel Plated Steel	-55 °C	125 °C	Signal	15	Gold	Receptacle Female Sockets	Phosphor Bronze	3	UL94 V-0	D-Sub High Density	Housing/Shell (Unthreaded)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
