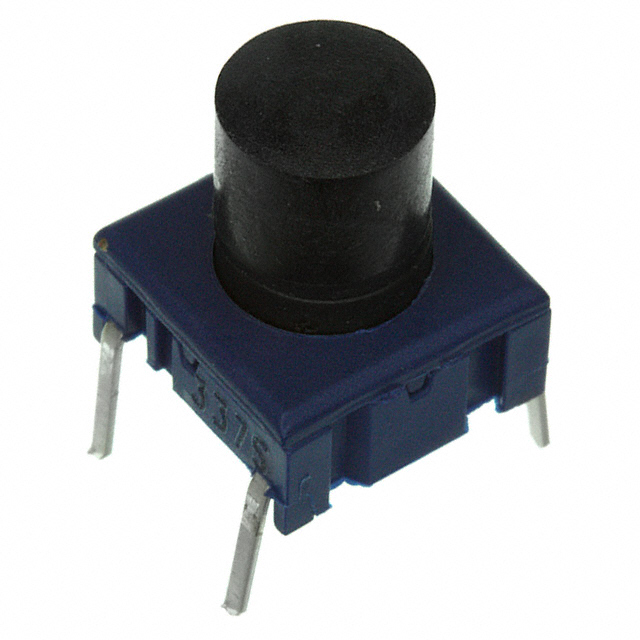

3ETL9-12.0
ObsoleteMEC Switches
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Search across all available documentation for this part.
3ETL9-12.0
ObsoleteMEC Switches
SWITCH TACTILE SPST-NO 0.05A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3ETL9-12.0 |
|---|---|
| Actuator Height off PCB, Vertical [z] | 12 mm |
| Actuator Material | Polybutylene Terephthalate (PBT) |
| Actuator Orientation | Top Actuated |
| Actuator Type | Standard |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 24 VDC |
| Features | Sealed - Flux Protection |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 300 gf |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 10.1 mm |
| Outline [y] | 10.1 mm |
| Switch Function | Off-Mom |
| Switch Travel | 1 mm |
| Termination Style | PC Pin |
3ETL9 Series
| Part | Switch Function | Mechanical Life | Termination Style | Operating Force | Actuator Type | Actuator Material | Switch Travel | Contact Rating @ Voltage | Actuator Orientation | Mounting Type | Circuit | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Illumination | Outline [x] | Outline [y] | Actuator Height off PCB, Vertical | Features | Actuator Height off PCB, Vertical [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEC Switches | Off-Mom | 10000000 Cycles | PC Pin | 300 gf | Standard | Polybutylene Terephthalate (PBT) | 1 mm | 0.05 A 24 VDC | Top Actuated | Through Hole | SPST-NO | IP67 - Dust Tight Waterproof | -40 °C | 115 °C | Non-Illuminated | 10.1 mm | 10.1 mm | 10.4 mm | Sealed - Flux Protection | |
MEC Switches | Off-Mom | 10000000 Cycles | PC Pin | 300 gf | Standard | Polybutylene Terephthalate (PBT) | 1 mm | 0.05 A 24 VDC | Top Actuated | Through Hole | SPST-NO | IP67 - Dust Tight Waterproof | -40 °C | 115 °C | Non-Illuminated | 10.1 mm | 10.1 mm | 15 mm | Sealed - Flux Protection | |
MEC Switches | Off-Mom | 10000000 Cycles | PC Pin | 300 gf | Standard | Polybutylene Terephthalate (PBT) | 1 mm | 0.05 A 24 VDC | Top Actuated | Through Hole | SPST-NO | IP67 - Dust Tight Waterproof | -40 °C | 115 °C | Non-Illuminated | 10.1 mm | 10.1 mm | Sealed - Flux Protection | 12 mm | |
MEC Switches | Off-Mom | 10000000 Cycles | PC Pin | 300 gf | Standard | Polybutylene Terephthalate (PBT) | 1 mm | 0.05 A 24 VDC | Top Actuated | Through Hole | SPST-NO | IP67 - Dust Tight Waterproof | -40 °C | 115 °C | Non-Illuminated | 10.1 mm | 10.1 mm | Sealed - Flux Protection | 8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
3ETL9 Series
Tactile Switch SPST-NO Top Actuated Through Hole
Documents
Technical documentation and resources
