2940760

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 230V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE SPDT 6A 230V

Technical Specifications

Parameters and characteristics for this part

RELAY GEN PURPOSE SPDT 6A 230V

Part	Coil Type	Approval Agency	Termination Style	Relay Type	Coil Current	Features	Release Time	Operate Time	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Form	Load - Max Switching	Coil Voltage	Contact Material	Switching Voltage	Coil Resistance
Phoenix Contact 2940760	Non Latching	EAC	Screw Terminal	General Purpose	18 mA	Socket Included, Varistor	8 ms	10 ms	6 A	-20 C	40 °C	DIN Rail	SPDT (1 Form C)	95 W, 1500 VA	230 VAC	Silver Nickel (AgNi)	250 VAC, 250 VDC	12.8 kOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 102.00

General part information

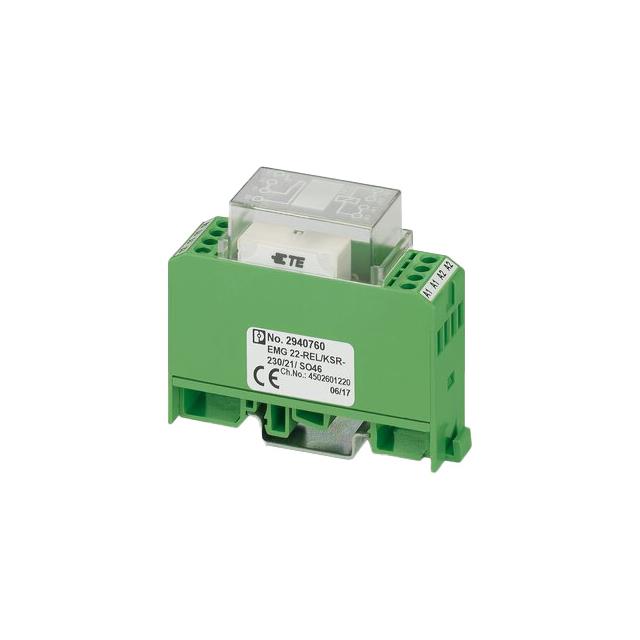

General Purpose Relay SPDT (1 Form C) 230VAC Coil DIN Rail

Technical documentation and resources

No documents available
