PCL2224V400B
ActiveVisual Communications Company - VCC

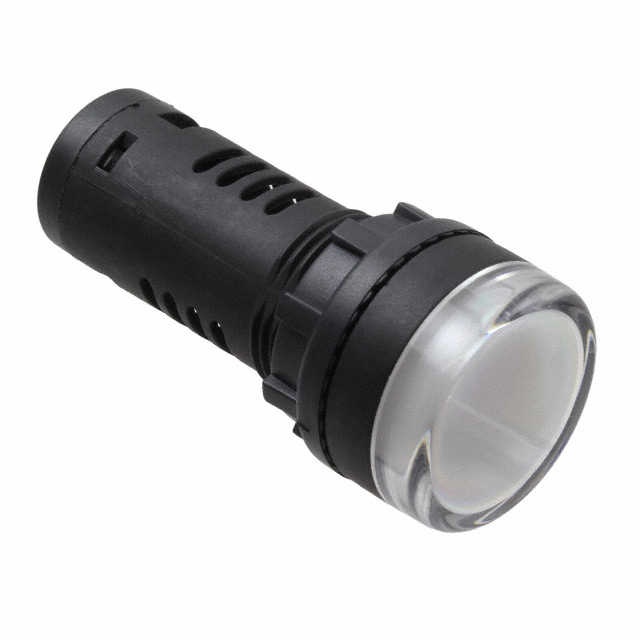

PMI RND 22MM LED 24V SCREW BLOCK
PCL2224V400B
ActiveVisual Communications Company - VCC
PMI RND 22MM LED 24V SCREW BLOCK
Description
General part information
PCL2224 Series
LED Panel Indicator White Diffused 110° 24V 50mA Screw Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | PCL2224V400B |
|---|---|
| Current | 50 mA |
| Ingress Protection | IP65 |
| Lamp Color | White |
| Lens Color | White |
| Lens Diameter | 29.5 mm |
| Lens Style | Round, Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 75 mcd |
| Panel Cutout Dimension | 0.88 " |
| Panel Cutout Shape | Round |
| Ratings | AC, DC |
| Termination Style | Screw Terminal |
| Type | LED |
| Viewing Angle | 110 ° |
| Voltage | 24 V |
| Wavelength - Peak | 445 nm |
