833-006-523-604
ActiveEDAC Inc.

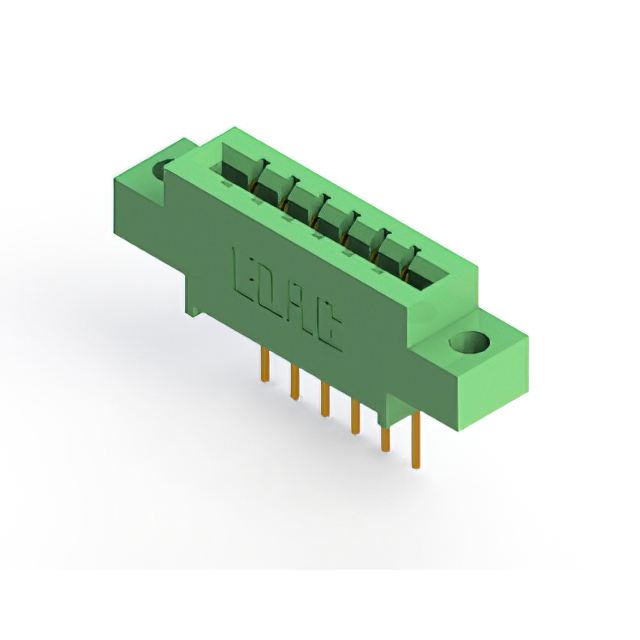

CONN EDGE SGL FMALE 6POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
833-006-523-604
ActiveEDAC Inc.
CONN EDGE SGL FMALE 6POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 833-006-523-604 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 6 |
| Number of Positions/Bay/Row [custom] | 6 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
833-006 Series
| Part | Contact Material | Number of Rows | Read Out | Number of Positions/Bay/Row [custom] | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Flange Feature | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Material - Insulation | Gender | Color | Contact Finish | Card Type | Pitch [x] | Pitch [x] | Contact Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | 1 | Single | 6 | 6 | 125 °C | -40 °C | Wire Wrap | 4-40 Threaded Insert Top Mount Opening | 1 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Diallyl Phthalate (DAP) | Female | Green | Gold | Non Specified - Single Edge | 0.156 in | 3.96 mm | Cantilever | ||||
EDAC Inc. | Copper Alloy | 1 | Single | 6 | 6 | 125 °C | -40 °C | Solder | Flush Mount Top Opening Unthreaded | 1 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Diallyl Phthalate (DAP) | Female | Green | Gold | Non Specified - Single Edge | 0.156 in | 3.96 mm | Cantilever | 3.96 mm | 0.156 in | ||
EDAC Inc. | Copper Alloy | 1 | Single | 6 | 6 | 125 °C | -40 °C | Wire Wrap | Side Mount Opening Unthreaded | 1 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Diallyl Phthalate (DAP) | Female | Green | Gold | Non Specified - Single Edge | 0.156 in | 3.96 mm | Cantilever | 3.25 mm | 0.128 in | ||
EDAC Inc. | Copper Alloy | 1 | Single | 6 | 6 | 125 °C | -40 °C | Wire Wrap | Top Mount Opening Unthreaded | 1 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Diallyl Phthalate (DAP) | Female | Green | Gold | Non Specified - Single Edge | 0.156 in | 3.96 mm | Cantilever | 3.96 mm | 0.156 in | ||
EDAC Inc. | Copper Alloy | 1 | Single | 6 | 6 | 125 °C | -40 °C | Solder | M3 Threaded Insert Top Mount Opening | 1 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Diallyl Phthalate (DAP) | Female | Green | Gold | Non Specified - Single Edge | 0.156 in | 3.96 mm | Cantilever | ||||
EDAC Inc. | Copper Alloy | 1 | Single | 6 | 6 | 125 °C | -40 °C | Solder | Side Mount Opening Unthreaded | 1 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Diallyl Phthalate (DAP) | Female | Green | Gold | Non Specified - Single Edge | 0.156 in | 3.96 mm | Cantilever | 3.25 mm | 0.128 in | ||
EDAC Inc. | Copper Alloy | 1 | Single | 6 | 6 | 125 °C | -40 °C | Wire Wrap | 1 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Diallyl Phthalate (DAP) | Female | Green | Gold | Non Specified - Single Edge | 0.156 in | 3.96 mm | Cantilever | |||||
EDAC Inc. | Copper Alloy | 1 | Single | 6 | 6 | 125 °C | -40 °C | Solder | Top Mount Opening Unthreaded | 1 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Diallyl Phthalate (DAP) | Female | Green | Gold | Non Specified - Single Edge | 0.156 in | 3.96 mm | Cantilever | 3.96 mm | 0.156 in | ||
EDAC Inc. | Copper Alloy | 1 | Single | 6 | 6 | 125 °C | -40 °C | Wire Wrap | Floating Bobbin Flush Mount | 1 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Diallyl Phthalate (DAP) | Female | Green | Gold | Non Specified - Single Edge | 0.156 in | 3.96 mm | Cantilever | 2.95 mm | 0.116 in | ||
EDAC Inc. | Copper Alloy | 1 | Single | 6 | 6 | 125 °C | -40 °C | Solder | Flush Mount Top Opening Unthreaded | 1 | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Diallyl Phthalate (DAP) | Female | Green | Gold | Non Specified - Single Edge | 0.156 in | 3.96 mm | Cantilever | 3.25 mm | 0.128 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
833-006 Series
6 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
