BSC033N08NS5SCATMA1

Active

Infineon Technologies

OPTIMOS™ 5 POWER MOSFETS 80 V IN SUPERSO8 DSC PACKAGE WITH DUAL-SIDE COOLING FOR ENHANCED THERMAL PERFORMANCE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BSC033N08NS5SCATMA1

Active

Infineon Technologies

OPTIMOS™ 5 POWER MOSFETS 80 V IN SUPERSO8 DSC PACKAGE WITH DUAL-SIDE COOLING FOR ENHANCED THERMAL PERFORMANCE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSC033N08NS5SCATMA1

Current - Continuous Drain (Id) @ 25°C	144 A
Drain to Source Voltage (Vdss)	80 V
Drive Voltage (Max Rds On, Min Rds On)	6 V, 10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs	66 nC
Input Capacitance (Ciss) (Max) @ Vds	4600 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	8-PowerWDFN
Power Dissipation (Max)	136 W
Rds On (Max) @ Id, Vgs	3.3 mOhm
Supplier Device Package	PG-WSON-8-2
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	3.8 V

BSC033 Series

Part	Rds On (Max) @ Id, Vgs	Technology	Vgs(th) (Max) @ Id	Package / Case	Gate Charge (Qg) (Max) @ Vgs	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package	Mounting Type	FET Type	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Operating Temperature [Min]	Operating Temperature [Max]	Vgs (Max)
Infineon Technologies BSC033N08NS5SCATMA1	3.3 mOhm	MOSFET (Metal Oxide)	3.8 V	8-PowerWDFN	66 nC	144 A	136 W	6 V 10 V	PG-WSON-8-2	Surface Mount	N-Channel	80 V	4600 pF	-55 °C	175 ░C	20 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.94
		10	$ 2.59
		100	$ 1.82
		500	$ 1.49
		1000	$ 1.39
		2000	$ 1.37
	Digi-Reel®	1	$ 3.94
		10	$ 2.59
		100	$ 1.82
		500	$ 1.49
		1000	$ 1.39
		2000	$ 1.37
	Tape & Reel (TR)	4000	$ 1.37
Newark	Each (Supplied on Cut Tape)	1	$ 3.76
		10	$ 2.62
		25	$ 2.37
		50	$ 2.13
		100	$ 1.88
		250	$ 1.72
		500	$ 1.55
		1000	$ 1.44

Description

General part information

BSC033 Series

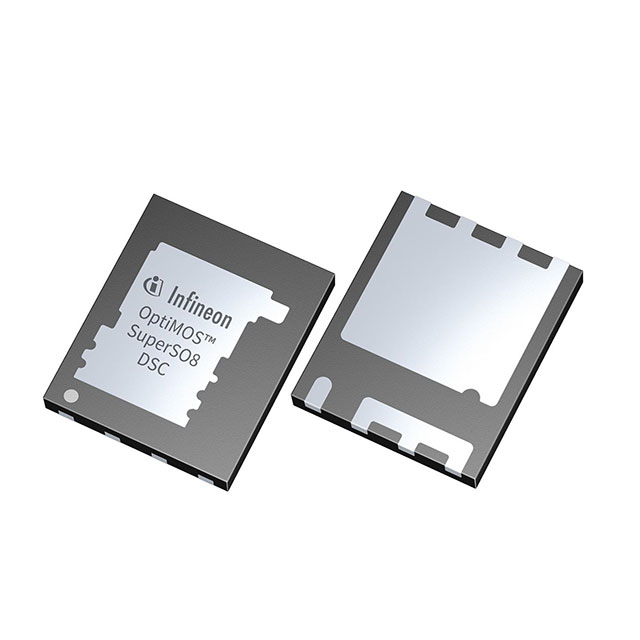

OptiMOS™ 5 power MOSFETs 80 VinSuperSO8 DSC (dual-side cooling)package offer all thermal management benefits of dual-side cooling solutions with industry-standard footprint. SuperSO8 DSC allows excellent thermal performance with two paths for heat dissipation (bottom through PCB + top through exposed clip and heatsink). About 30% of the heat generated on the MOSFET die is transferred through the top and less heat is transferred to the PCB. Thus,
