6GK52040BA002YF2

Active

Siemens

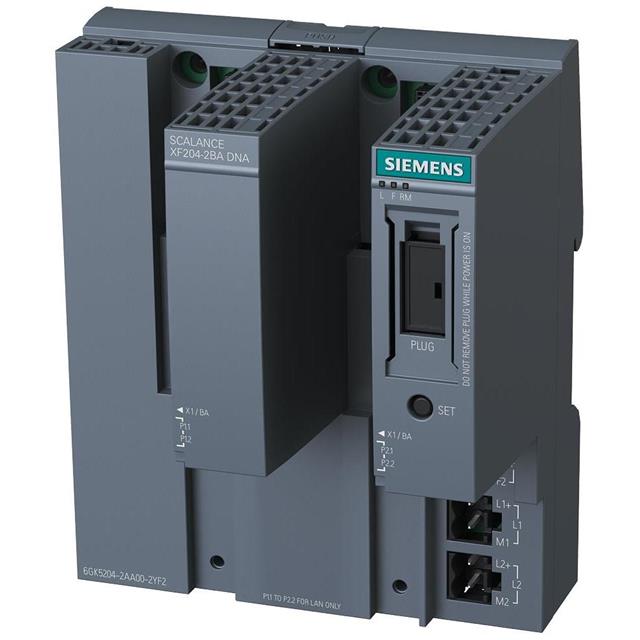

SCALANCE XF204 DNA

Search across all available documentation for this part.

Active

Siemens

SCALANCE XF204 DNA

Technical Specifications

Parameters and characteristics for this part

Part	Copper Ports	Connector Type	Configuration	Mounting Type	Copper Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Number of Ports	Ingress Protection	Type
Siemens 6GK52040BA002AF2	4	RJ45	Fixed	DIN Rail	10/100	-40 °C	60 °C	32 V	18 V	4
Siemens 6GK52040JA102BA6
Siemens 6GK52040JA002BA6	4	M12 RJ45	Fixed	DIN Rail Wall Mount	10/100	-25 °C	70 °C	32 V	18 V	4	IP65 IP67
Siemens 6GK52040BA002GF2	4	RJ45	Fixed	DIN Rail	10/100	-40 °C	70 °C	28.8 V	19.2 V	4
Siemens 6GK52040BA002BA3	4	RJ45	Fixed	DIN Rail Wall Mount	10/100	-40 °C	70 °C	32 V	18 V	4	IP30
Siemens 6GK52040BA002BF2	4	RJ45	Fixed	DIN Rail	10/100	-40 °C	60 °C	32 V	18 V	4
Siemens 6GK52040BA102BA3	4	RJ45	Fixed	DIN Rail Wall Mount	10/100	-40 °C	70 °C	32 V	18 V	4	IP30
Siemens 6GK52040BS003LA3	4	RJ45	Fixed	DIN Rail	100	-40 °C	70 °C	276 V	85 VDC	4
Siemens 6GK52040BA002YF2	6	RJ45	Fixed	DIN Rail	10/100	-40 °C	70 °C	28.8 V	19.2 V	6
Siemens 6GK52040BA002MB2	4	RJ45	Fixed	DIN Rail	100	-40 °C	60 °C	28.8 V	19.2 V	4		Switch

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1572.19

General part information

Network Switch - Managed 6 Ports IP20

Technical documentation and resources
