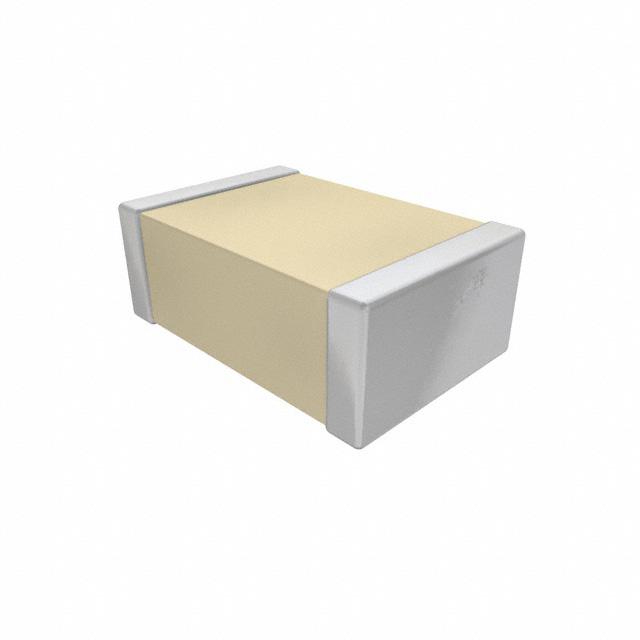

C1812J105J1RAC7800
ActiveKEMET
CAP CER 1UF 100V X7R 1812
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C1812J105J1RAC7800
ActiveKEMET
CAP CER 1UF 100V X7R 1812
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C1812J105J1RAC7800 |
|---|---|
| Applications | Boardflex Sensitive |
| Capacitance | 1 µF |
| Features | Soft Termination, Open Mode |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Temperature Coefficient | X7R |
| Thickness (Max) | 1.8 mm |
| Thickness (Max) [Max] | 0.071 " |
| Tolerance | 5 % |
| Voltage - Rated | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.22 | |
| 10 | $ 3.63 | |||
| 50 | $ 3.29 | |||
| 100 | $ 2.72 | |||
| Digi-Reel® | 1 | $ 4.22 | ||
| 10 | $ 3.63 | |||
| 50 | $ 3.29 | |||
| 100 | $ 2.72 | |||
| Tape & Reel (TR) | 500 | $ 2.36 | ||
| 1000 | $ 2.19 | |||
| 2500 | $ 2.15 | |||
Description
General part information
C1812J Series
1 µF ±5% 100V Ceramic Capacitor X7R 1812 (4532 Metric)
