APCL86P24

Active

AMPHENOL PCD

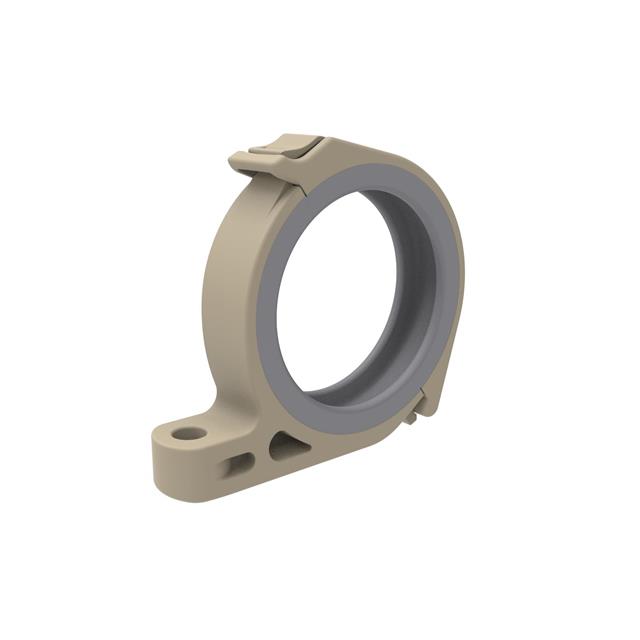

SNAP P-CLAMP WIRE BUNDLE DIA 1.5

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

APCL86P24

Active

AMPHENOL PCD

SNAP P-CLAMP WIRE BUNDLE DIA 1.5

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	APCL86P24

Bundle Center to Mounting Center [x]	1.249 in
Bundle Center to Mounting Center [x]	31.73 mm
Color	Beige
Height [z]	2.134 in
Height [z]	54.2 mm
Material	Polyetheretherketone (PEEK)
Mounting Type	Fastener
Opening Size [z]	37.31 mm
Opening Size [z]	1.469 in
Panel Hole Size	5.08 mm
Panel Hole Size	0.2 in
Type	Clamp, P-Type
Type Attributes	Hinged, Cushioned

APCL86 Series

Part	Bundle Center to Mounting Center [x]	Bundle Center to Mounting Center [x]	Opening Size [z]	Opening Size [z]	Mounting Type	Color	Height [z]	Height [z]	Type Attributes	Material	Type	Panel Hole Size	Panel Hole Size	Opening Size	Opening Size	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Opening Size [diameter]	Opening Size [diameter]	Bundle Center to Mounting Center [x]	Width [y]	Width [y]	Opening Size [custom]	Opening Size [custom]	Height [diameter]	Height [diameter]	Bundle Center to Mounting Center [custom]	Bundle Center to Mounting Center [custom]
AMPHENOL PCD APCL86P24	1.249 in	31.73 mm	37.31 mm	1.469 in	Fastener	Beige	2.134 in	54.2 mm	Cushioned Hinged	Polyetheretherketone (PEEK)	Clamp P-Type	5.08 mm	0.2 in
AMPHENOL PCD APCL86P14	0.908 in	23.06 mm			Fastener	Beige	1.524 in	38.71 mm	Cushioned Hinged	Polyetheretherketone (PEEK)	Clamp P-Type	5.08 mm	0.2 in	21.44 mm	0.844 in
AMPHENOL PCD APCL86P10			15.09 mm	0.594 in	Fastener	Beige	1.271 in	32.28 mm	Cushioned Hinged	Polyetheretherketone (PEEK)	Clamp P-Type	5.08 mm	0.2 in			19.89 mm	0.783 in
AMPHENOL PCD APCL86P12					Fastener	Beige	1.405 in	35.69 mm	Cushioned Hinged	Polyetheretherketone (PEEK)	Clamp P-Type	5.08 mm	0.2 in			21.46 mm	0.845 in	18.26 mm	0.719 in
AMPHENOL PCD APCL86P06		0.592 in	8.74 mm	0.344 in	Fastener	Beige	0.868 in	22.05 mm	Cushioned Hinged	Polyetheretherketone (PEEK)	Clamp P-Type	5.08 mm	0.2 in							15.04 mm	0.45 in	11.43 mm
AMPHENOL PCD APCL86P16					Fastener	Beige	1.64 in	41.66 mm	Cushioned Hinged	Polyetheretherketone (PEEK)	Clamp P-Type	5.08 mm	0.2 in			24.64 mm	0.97 in						24.61 mm	0.969 in
AMPHENOL PCD APCL86P09	0.752 in	19.1 mm			Fastener	Beige	1.047 in	26.59 mm	Cushioned Hinged	Polyetheretherketone (PEEK)	Clamp P-Type	5.08 mm	0.2 in										13.5 mm	0.531 in
AMPHENOL PCD APCL86P04					Fastener	Beige	0.73 in	18.54 mm	Cushioned Hinged	Polyetheretherketone (PEEK)	Clamp P-Type	5.08 mm	0.2 in			13.44 mm	0.529 in				0.45 in	11.43 mm	5.56 mm	0.219 in
AMPHENOL PCD APCL86P05					Fastener	Beige			Cushioned Hinged	Polyetheretherketone (PEEK)	Clamp P-Type	5.08 mm	0.2 in			14.22 mm	0.56 "				0.45 in	11.43 mm	7.14 mm	0.281 in	20.55 mm	0.809 in
AMPHENOL PCD APCL86P20					Fastener	Beige	1.898 "	48.21 mm	Cushioned Hinged	Polyetheretherketone (PEEK)	Clamp P-Type	5.08 mm	0.2 in										30.96 mm	1.219 in			28.55 mm	1.124 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 62.11
		10	$ 48.16
		25	$ 43.75
		50	$ 40.76
		100	$ 38.06

Description

General part information

APCL86 Series

Cable Clamp, P-Type Beige Fastener 1.469" (37.31mm)
