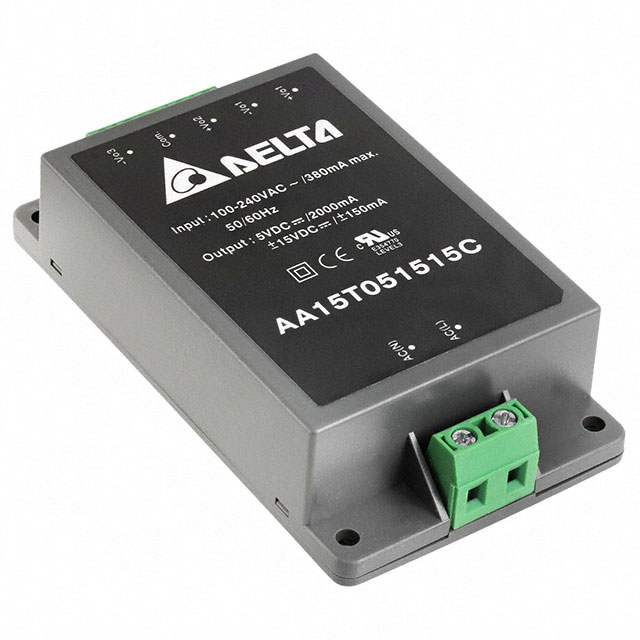

AA15T051515C

Obsolete

Delta Electronics

AC/DC CONVERTER 5V +/-15V 15W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC CONVERTER 5V +/-15V 15W

Technical Specifications

Parameters and characteristics for this part

Specification	AA15T051515C

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	2 A
Current - Output 2	150 mA
Current - Output 3	150 mA
Efficiency	79 %
Features	Universal Input, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	15 W
Size / Dimension [x]	74 mm
Size / Dimension [x]	2.91 "
Size / Dimension [y]	54 mm
Size / Dimension [y]	2.13 in
Size / Dimension [z]	0.77 "
Size / Dimension [z]	19.5 mm
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	5 V
Voltage - Output 2	15 V
Voltage - Output 3	-15 V

AC/DC CONVERTER 5V +/-15V 15W

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Current - Output 3	Features	Approval Agency	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Minimum Load Required	Power (Watts)	Voltage - Output 2	Mounting Type	Voltage - Output 1	Efficiency	Applications	Current - Output 2	Number of Outputs	Type	Voltage - Output 3	Current - Output 1
Delta Electronics AA15T051515C	74 mm	2.91 "	0.77 "	19.5 mm	54 mm	2.13 in	150 mA	DC Input Capable, Universal Input	CE	3000 V	70 °C	-25 °C		15 W	15 V	Chassis Mount	5 V	79 %	ITE (Commercial)	150 mA	3	Enclosed	-15 V	2 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 3 Output 5V 15V -15V 85 ~ 264 VAC Input
