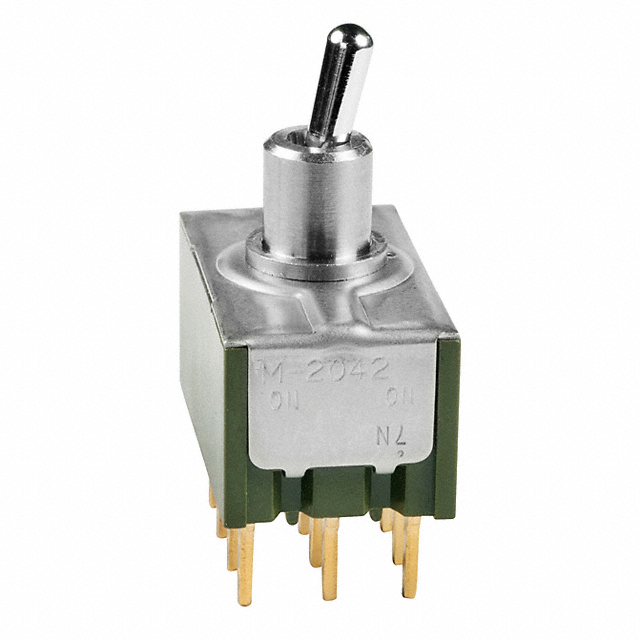

M2042S2A2G03

Obsolete

NKK Switches

SWITCH TOGGLE 4PDT 0.4VA 28V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH TOGGLE 4PDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	M2042S2A2G03

Actuator Length [custom]	6.86 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	4PDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	6.5 mm
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Current Rating (Amps)	Circuit	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Actuator Length [custom]	Features	Voltage Rating - AC	Actuator Type	Panel Cutout Dimensions [diameter]	Switch Function	Bushing Thread	Mounting Type	Termination Style	Electrical Life	Illumination	Actuator Length [x]
NKK Switches M2042S2A2G03	0.4 VA	4PDT	28 V	-30 ░C	85 °C	Brass Chrome Plated	6.86 mm	Epoxy Sealed Terminals	28 V	Standard Round	6.5 mm	On-On	Unthreaded	Through Hole	PC Pin	50000 Cycles	Non-Illuminated
NKK Switches M2042S2A2G40	0.4 VA	4PDT	28 V	-30 ░C	85 °C	Brass Chrome Plated	6.86 mm	Epoxy Sealed Terminals	28 V	Standard Round	6.5 mm	On-On	Unthreaded	Right Angle Through Hole Vertical	PC Pin	50000 Cycles	Non-Illuminated
NKK Switches M2042S2D1W01/CUL	4 A 6 A	4PDT	30 V	-30 ░C	85 °C	Brass Chrome Plated		Epoxy Sealed Terminals	125 V	Standard Round	6.5 mm	On-On	1/4-40		Solder Lug	25000 Steps	Non-Illuminated	5.08 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch 4PDT Through Hole
