SFV30R-2STE9HLF

Obsolete

Amphenol ICC (FCI)

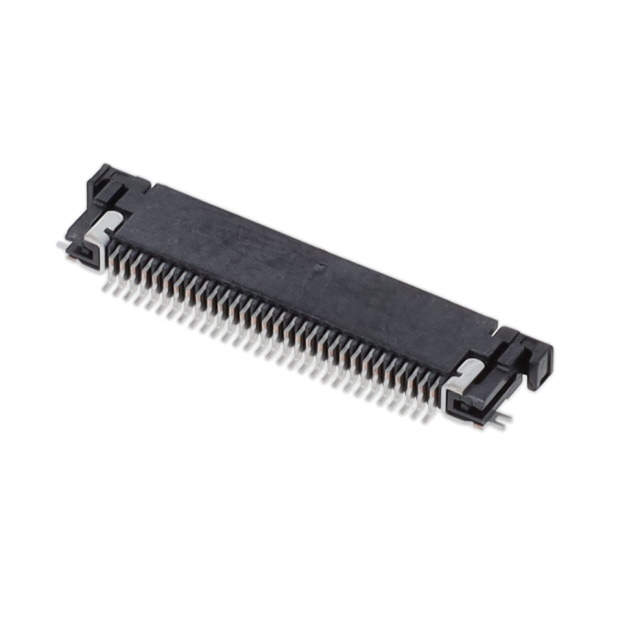

CONN FFC FPC TOP 30POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SFV30R-2STE9HLF

Obsolete

Amphenol ICC (FCI)

CONN FFC FPC TOP 30POS 0.5MM R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SFV30R-2STE9HLF

Actuator Color	Black
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Cable End Type	Tapered, Straight
Connector/Contact Type	Contacts, Top
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness [z]	0.33 mm, 0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	1.8 mm
Height Above Board	0.071 in
Housing Color	Black
Housing Material	Glass Filled, Halogen Free, Liquid Crystal Polymer (LCP)
Locking Feature	Slide Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	30
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

SFV30R Series

Part	Housing Material	Cable End Type	Actuator Material	Mounting Type	Locking Feature	Contact Finish	Actuator Color	Mating Cycles	Number of Positions	Flat Flex Type	Contact Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board	Connector/Contact Type	Pitch [x]	Pitch [x]	Material Flammability Rating	Current Rating (Amps)	Termination	FFC, FCB Thickness [z]	Features	Housing Color	FFC, FCB Thickness
Amphenol ICC (FCI) SFV30R-2STBE1HLF	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Tapered	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Surface Mount Right Angle	Slide Lock	Gold	Black	20	30	FFC FPC	Phosphor Bronze	50 V	105 ░C	-55 °C	1.8 mm	0.071 in	Contacts Top	0.5 mm	0.02 in	UL94 V-0	0.5 A	Solder	0.3 mm 0.33 mm	Solder Retention Zero Insertion Force (ZIF)	Black
Amphenol ICC (FCI) SFV30R-2STAE1HLF	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Notched	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Surface Mount Right Angle	Slide Lock	Gold	Brown	20	30	FFC FPC	Phosphor Bronze	50 V	105 ░C	-55 °C	1.8 mm	0.071 in	Contacts Top	0.5 mm	0.02 in	UL94 V-0	0.5 A	Solder	0.3 mm 0.33 mm		Black
Amphenol ICC (FCI) SFV30R-6STE1HLF				Surface Mount Right Angle	Slide Lock				30									0.5 mm	0.02 in
Amphenol ICC (FCI) SFV30R-4STE1	Polyamide (PA) Nylon Glass Filled	Notched	Polyphenylene Sulfide (PPS) Glass Filled	Surface Mount Right Angle	Slide Lock	Tin Alloy	Black	20	30	FPC	Phosphor Bronze	50 V	105 ░C	-55 °C	1.8 mm	0.071 in	Contacts Top	0.5 mm	0.02 in	UL94 V-0	0.5 A	Solder		Solder Retention Zero Insertion Force (ZIF)	Black	0.33 mm
Amphenol ICC (FCI) SFV30R-2STE9HLF	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Surface Mount Right Angle	Slide Lock	Tin	Black	20	30	FFC FPC	Phosphor Bronze	50 V	105 ░C	-55 °C	1.8 mm	0.071 in	Contacts Top	0.5 mm	0.02 in	UL94 V-0	0.5 A	Solder	0.3 mm 0.33 mm	Solder Retention Zero Insertion Force (ZIF)	Black
Amphenol ICC (FCI) SFV30R-2STE1	Polyamide (PA) Nylon Glass Filled	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Surface Mount Right Angle	Slide Lock	Tin Alloy	Brown	20	30	FFC FPC	Phosphor Bronze	50 V	105 ░C	-55 °C	1.8 mm	0.071 in	Contacts Top	0.5 mm	0.02 in	UL94 V-0	0.5 A	Solder	0.3 mm 0.33 mm	Solder Retention Zero Insertion Force (ZIF)	Black
Amphenol ICC (FCI) SFV30R-3STE1	Polyamide (PA) Nylon Glass Filled	Notched	Polyphenylene Sulfide (PPS) Glass Filled	Surface Mount Right Angle	Slide Lock	Tin Alloy	Black	20	30	FPC	Phosphor Bronze	50 V	105 ░C	-55 °C	1.8 mm	0.071 in	Contacts Bottom	0.5 mm	0.02 in	UL94 V-0	0.5 A	Solder		Solder Retention Zero Insertion Force (ZIF)	Black	0.33 mm
Amphenol ICC (FCI) SFV30R-3STBE1HLF	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Surface Mount Right Angle	Slide Lock	Gold	Black	20	30	FPC	Phosphor Bronze	50 V	105 ░C	-55 °C	1.8 mm	0.071 in	Contacts Bottom	0.5 mm	0.02 in	UL94 V-0	0.5 A	Solder	0.3 mm 0.33 mm		Black
Amphenol ICC (FCI) SFV30R-1STAE1HLF	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Tapered	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Surface Mount Right Angle	Slide Lock	Gold	Black	20	30	FFC FPC	Phosphor Bronze	50 V	105 ░C	-55 °C	1.8 mm	0.071 in	Contacts Bottom	0.5 mm	0.02 in	UL94 V-0	0.5 A	Solder		Solder Retention Zero Insertion Force (ZIF)	Black	0.3 mm
Amphenol ICC (FCI) SFV30R-1STE1	Polyamide (PA) Nylon Glass Filled	Straight Tapered	Polyphenylene Sulfide (PPS) Glass Filled	Surface Mount Right Angle	Slide Lock	Tin Alloy	Brown	20	30	FFC FPC	Phosphor Bronze	50 V	105 ░C	-55 °C	1.8 mm	0.071 in	Contacts Bottom	0.5 mm	0.02 in	UL94 V-0	0.5 A	Solder	0.3 mm 0.33 mm	Solder Retention Zero Insertion Force (ZIF)	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.07
		10	$ 0.81
		25	$ 0.73
		50	$ 0.68
		100	$ 0.62
		250	$ 0.56
	Tape & Reel (TR)	500	$ 0.52
		1000	$ 0.49

Description

General part information

SFV30R Series

30 Position FFC, FPC Connector Contacts, Top 0.020" (0.50mm) Surface Mount, Right Angle
