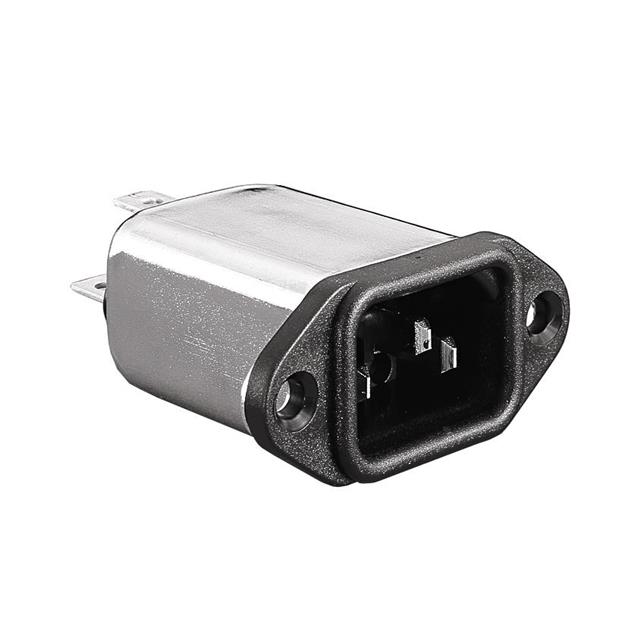

PS00/A0620/6300

Active

BULGIN LIMITED

CONNECTOR: AC SUPPLY; SOCKET; MALE; 6A; 250VAC; C14 (E),EMC/EMI

Search across all available documentation for this part.

Active

BULGIN LIMITED

CONNECTOR: AC SUPPLY; SOCKET; MALE; 6A; 250VAC; C14 (E),EMC/EMI

Technical Specifications

Parameters and characteristics for this part

Specification	PS00/A0620/6300

Accomodates a Fuse	False
Approval Agency	VDE, CSA, UL, ENEC
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	6 A
Current Rating - Filter	6 A
Filter Type	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.5 mm
Panel Cutout Dimensions [y]	21 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Approval Agency	Current Rating - Filter	Filter Type	Current Rating - Appliance Inlet	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Type	Connector Style	Voltage Rating - Appliance Inlet	Mounting Type	Termination	Termination	Termination
BULGIN LIMITED PS00/A0120/6300	CSA ENEC UL VDE	1 A	Filtered (EMI RFI) - Commercial	1 A	21 mm	28.5 mm	Male Blades Receptacle	IEC 320-C14	250 VAC	Flange Panel Mount	0.25 in	6.3 mm	Quick Connect
BULGIN LIMITED PS00/A0620/6300	CSA ENEC UL VDE	6 A	Filtered (EMI RFI) - Commercial	6 A	21 mm	28.5 mm	Male Blades Receptacle	IEC 320-C14	250 VAC	Flange Panel Mount	0.25 in	6.3 mm	Quick Connect
BULGIN LIMITED PS00/A0320/6300	CSA ENEC UL VDE	3 A	Filtered (EMI RFI) - Commercial	3 A	21 mm	28.5 mm	Male Blades Receptacle	IEC 320-C14	250 VAC	Flange Panel Mount	0.25 in	6.3 mm	Quick Connect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
