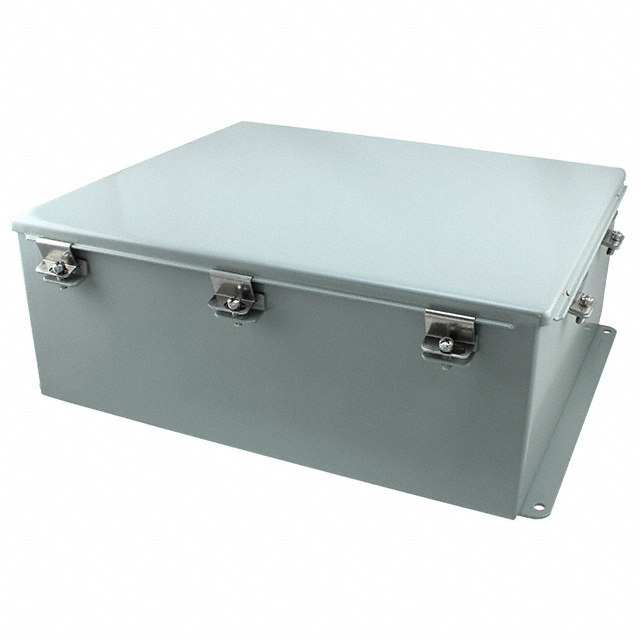

Specification	A1614CHNF

Area (L x W)	224 in²
Color	Gray
Container Type	Junction Box
Design	Lid, Hinged Door
Features	Wall Mount, Stainless Steel Hinges
Height	5.984 in
Material	Metal, Steel
Ratings	13, 12, NEMA 4, UL-508A, IP66
Size / Dimension Length	15.984 in
Size / Dimension Width	14.016 in
Thickness	14 Gauge
Thickness	14 Gauge
Weight	22 lbs

A1614 Series

Part	Weight	Color	Container Type	Area (L x W)	Size / Dimension Width	Size / Dimension Length	Ratings	Features	Thickness	Thickness	Material	Height	Design
Hoffman Enclosures, Inc. A1614CH	21 lbs	Gray	Junction Box	224 in²	14.016 in	15.984 in	13 50E IP65 NEMA 12 UL-50	Sealing Gasket	14 Gauge	14 Gauge	Metal Steel	5.984 in	Hinged Door Lid
Hoffman Enclosures, Inc. A1614CHNF	22 lbs	Gray	Junction Box	224 in²	14.016 in	15.984 in	12 13 IP66 NEMA 4 UL-508A	Stainless Steel Hinges Wall Mount	14 Gauge	14 Gauge	Metal Steel	5.984 in	Hinged Door Lid
