TXR40AC00-1406AI
ActiveTE Connectivity AMP Connectors

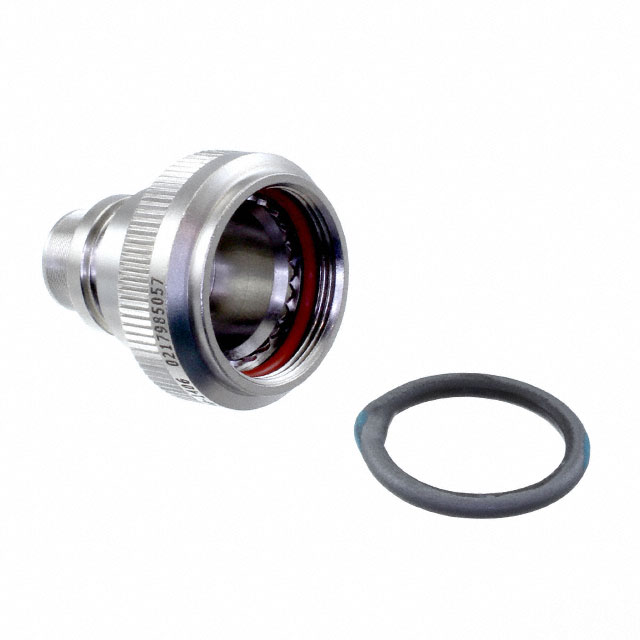

CONN BACKSHELL ADPT SZ15 D SILV
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TXR40AC00-1406AI
ActiveTE Connectivity AMP Connectors
CONN BACKSHELL ADPT SZ15 D SILV
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TXR40AC00-1406AI | TXR40AC00 Series |
|---|---|---|
| Cable Exit | 180 ° | 180 ° |
| Color | Silver | Silver |
| Diameter - Outside | - | 0.709 - 1.279 in |
| Diameter - Outside [diameter] | 1.142 in | 1.142 - 32.49 mm |
| Diameter - Outside [diameter] | 29 mm | 29 mm |
| Features | Tinel Lock | Tinel Lock |
| For Use With/Related Products | MIL-DTL-38999 Series III, IV | MIL-DTL-38999 Series III, IV |
| Includes | 1 pcs, 1 pcs, 1 pcs, 1 pcs | 1 pcs |
| Includes | - | 1 Braid, 2 O-Rings, 2 pc Backshell, 1 Tinel Ring |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Material | Aluminum Alloy | Aluminum Alloy |
| Plating | Electroless Nickel | Electroless Nickel |
| Shell Size - Insert | 15 | 15 |
| Shell Size - Insert | D | 17, E, D |
| Shell Size - Insert | - | 9 |
| Shell Size - Insert | - | A |
| Shielding | Shielded | Shielded |
| Thread Size | - | M25x1, M12x1 |
| Type | Backshell, Heat Shrink Adapter | Backshell, Heat Shrink Adapter |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 129.84 | |
| 10 | $ 126.18 | |||
| 25 | $ 120.69 | |||
| 50 | $ 117.04 | |||
TXR40AC00 Series
CONN BACKSHELL ADPT SZ17 E SILV
| Part | Features | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Type | Shell Size - Insert | Shielding | For Use With/Related Products | Thread Size | Color | Cable Exit | Ingress Protection | Plating | Includes | Material | Shell Size - Insert | Diameter - Outside [diameter] | Shell Size - Insert [custom] | Shell Size - Insert [custom] | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors TXR40AC00-1612BI | Tinel Lock | 1.279 in | 32.49 mm | Backshell, Heat Shrink Adapter | 17, E | Shielded | MIL-DTL-38999 Series III, IV | M25x1 | Silver | 180 ° | Environment Resistant | Electroless Nickel | 1 pcs, 1 pcs, 1 pcs, 1 pcs | Aluminum Alloy | |||||
TE Connectivity AMP Connectors TXR40AC00-1410AI | Tinel Lock | 1.142 in | Backshell, Heat Shrink Adapter | D | Shielded | MIL-DTL-38999 Series III, IV | Silver | 180 ° | Environment Resistant | Electroless Nickel | 1 pcs, 1 pcs, 1 pcs, 1 pcs | Aluminum Alloy | 15 | 29 mm | |||||
TE Connectivity AMP Connectors TXR40AC00-0807AI | Tinel Lock | 0.709 in | 18 mm | Backshell, Heat Shrink Adapter | Shielded | MIL-DTL-38999 Series III, IV | M12x1 | Silver | 180 ° | Environment Resistant | Electroless Nickel | Aluminum Alloy | 9 | A | 1 Braid, 1 Tinel Ring, 2 O-Rings, 2 pc Backshell | ||||
TE Connectivity AMP Connectors TXR40AC00-1406AI | Tinel Lock | 1.142 in | Backshell, Heat Shrink Adapter | D | Shielded | MIL-DTL-38999 Series III, IV | Silver | 180 ° | Environment Resistant | Electroless Nickel | 1 pcs, 1 pcs, 1 pcs, 1 pcs | Aluminum Alloy | 15 | 29 mm | |||||
TE Connectivity AMP Connectors TXR40AC00-1610BI | Tinel Lock | 1.279 in | 32.49 mm | Backshell, Heat Shrink Adapter | 17, E | Shielded | MIL-DTL-38999 Series III, IV | M25x1 | Silver | 180 ° | Environment Resistant | Electroless Nickel | 1 pcs, 1 pcs, 1 pcs, 1 pcs | Aluminum Alloy | |||||
TE Connectivity AMP Connectors TXR40AC00-1410BI | Tinel Lock | 1.142 in | Backshell, Heat Shrink Adapter | D | Shielded | MIL-DTL-38999 Series III, IV | Silver | 180 ° | Environment Resistant | Electroless Nickel | 1 pcs, 1 pcs, 1 pcs, 1 pcs | Aluminum Alloy | 15 | 29 mm |
Description
General part information
TXR40AC00 Series
Silver Connector Backshell, Heat Shrink Adapter M22x1 15, D
