058-8578-102
ActiveITT Cannon, LLC

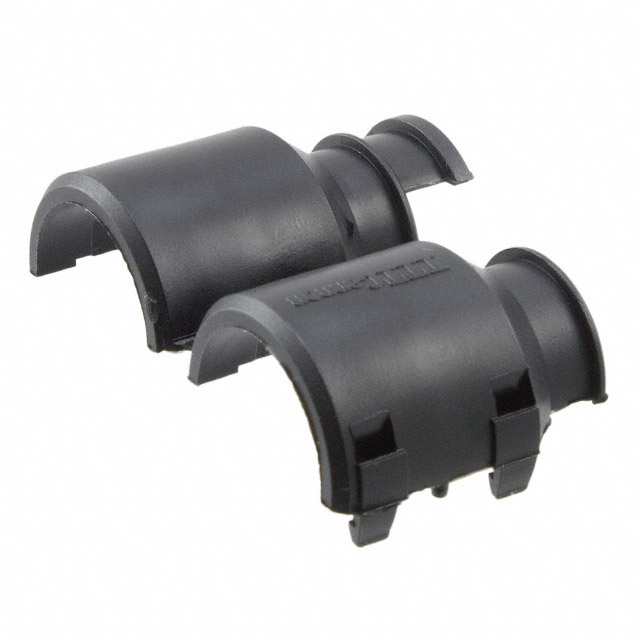

CONN BACKSHELL BLACK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
058-8578-102
ActiveITT Cannon, LLC
CONN BACKSHELL BLACK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 058-8578-102 |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [custom] | 10 mm |
| Cable Opening [custom] | 0.394 in |
| Color | Black |
| Diameter - Outside [diameter] | 24.1 mm |
| Diameter - Outside [diameter] | 0.949 in |
| For Use With/Related Products | Flex Tube |
| Includes | 1 pc - 1 Backshell |
| Ingress Protection | IP69K, IP67 |
| Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Shielding | Unshielded |
| Type | Backshell |
058-8 Series
| Part | Type | Cable Exit | Shielding | Ingress Protection | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Material | For Use With/Related Products | Color | Cable Opening [custom] | Cable Opening [custom] | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
ITT Cannon, LLC | Backshell | 180 ° | Unshielded | IP67 IP69K | 24.1 mm | 0.949 in | Polybutylene Terephthalate (PBT) Glass Filled | Flex Tube | Black | 10 mm | 0.394 in | 1 pc - 1 Backshell |
ITT Cannon, LLC | Backshell | 90 ° | Unshielded | IP67 IP69K | 24.1 mm | 0.949 in | Polybutylene Terephthalate (PBT) Glass Filled | Flex Tube | Black | 8.5 mm | 0.335 in | 1 pc - 1 Backshell |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.69 | |
| 10 | $ 2.44 | |||
| 25 | $ 2.31 | |||
| 50 | $ 2.26 | |||
| 100 | $ 2.15 | |||
| 300 | $ 1.88 | |||
| 500 | $ 1.83 | |||
| 1000 | $ 1.56 | |||
| 2500 | $ 1.45 | |||
Description
General part information
058-8 Series
Black Connector Backshell
