M17/176-00002

Active

Cinch Connectivity Solutions Trompeter

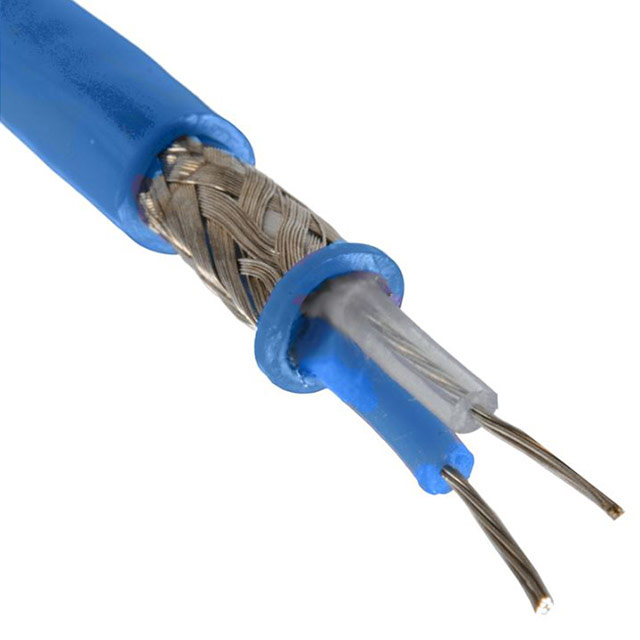

CABLE TWINAXIAL 24AWG 500'

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CABLE TWINAXIAL 24AWG 500'

Technical Specifications

Parameters and characteristics for this part

Specification	M17/176-00002

Cable Type	Twinaxial
Conductor Material	Copper, Silver Coated
Conductor Strand [custom]	36 AWG
Conductor Strand [custom]	19 Strands
Dielectric Diameter [diameter]	1.07 mm
Dielectric Diameter [diameter]	0.042 in
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	High Temperature
Impedance	77 Ohms
Jacket (Insulation) Diameter [diameter]	0.129 in
Jacket (Insulation) Diameter [diameter]	3.28 mm
Jacket (Insulation) Material	Perfluoroalkoxy (PFA)
Jacket Color	Blue
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Shield Coverage [custom]	93 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
VoP, Velocity of Propagation	70
Wire Gauge	24 AWG

CABLE TWINAXIAL 24AWG 500'

Part	Shield Coverage [custom]	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Shield Material	Cable Type	Wire Gauge	Dielectric Material	Impedance	VoP, Velocity of Propagation	Shield Type	Jacket (Insulation) Material	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Features
Cinch Connectivity Solutions Trompeter M17/176-00002	93 %	1.07 mm	0.042 in	-55 °C	200 °C	Copper, Silver Coated	Copper, Silver Coated	Twinaxial	24 AWG	Polytetrafluoroethylene (PTFE)	77 Ohms	70	Braid	Perfluoroalkoxy (PFA)	152.4 m	6000 in	36 AWG	19 Strands	0.129 in	3.28 mm	Blue	High Temperature

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2446.13

General part information

Twinaxial Cable 24 AWG 500.0' (152.40m) 77 Ohms

Technical documentation and resources

No documents available
