1-1102389-2
ActiveTE Connectivity AMP Connectors

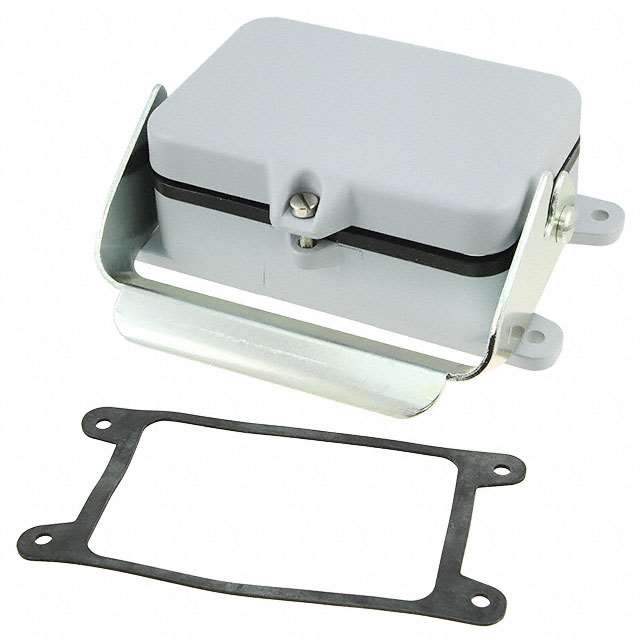

CONN BASE BOTTOM ENTRY SZ12
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1102389-2
ActiveTE Connectivity AMP Connectors
CONN BASE BOTTOM ENTRY SZ12
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1102389-2 |
|---|---|
| Connector Type | Base - Panel Mount |
| Features | Cover |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Aluminum |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Size | 12 |
| Size / Dimension [x] | 165 mm |
| Size / Dimension [x] | 6.496 in |
| Size / Dimension [y] | 90 mm |
| Size / Dimension [y] | 3.543 in |
| Size / Dimension [z] | 1.457 in |
| Size / Dimension [z] | 37 mm |
| Style | Bottom Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 24 | $ 162.64 | |
1102389 Series
CONN BASE BOTTOM ENTRY SZ12
| Part | Connector Type | Ingress Protection | Features | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Lock Location | Housing Color | Housing Finish | Size | Housing Material | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-1102389-2 | Base - Panel Mount | IP65 - Dust Tight, Water Resistant | Cover | 1.457 in | 37 mm | 165 mm | 90 mm | 3.543 in | 6.496 in | Locking Clip (1) on Base Bottom | Gray | Powder Coated | 12 | Aluminum | Bottom Entry |
Description
General part information
1102389 Series
Base - Panel Mount Connector Bottom Entry 12 IP65 - Dust Tight, Water Resistant
