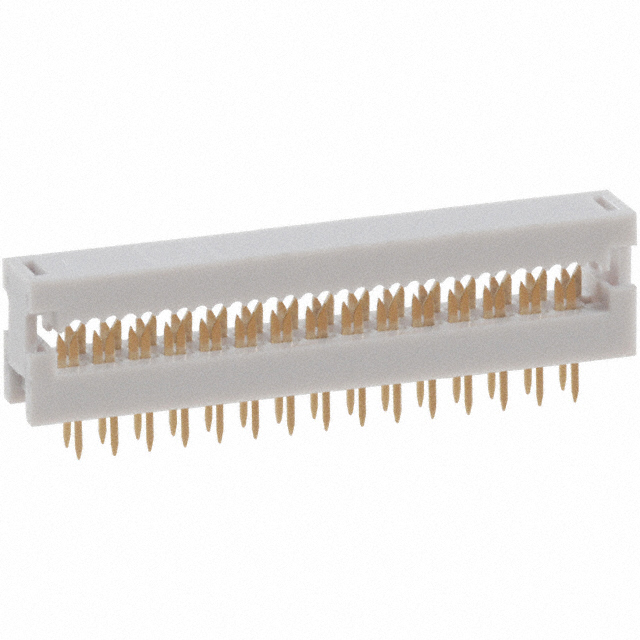

AWLP 30/3,2-G
ActiveAssmann WSW Components
CONN DIP HDR IDC 30POS VERT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AWLP 30/3,2-G
ActiveAssmann WSW Components
CONN DIP HDR IDC 30POS VERT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AWLP 30/3,2-G |
|---|---|
| Board-Side Pitch | 0.1 in |
| Board-Side Pitch | 2.54 mm |
| Cable Pitch | 1.27 mm |
| Cable Pitch | 0.05 in |
| Cable Termination | IDC |
| Color | Gray |
| Connector Type | Ribbon Cable, DIP Header |
| Contact Finish | Gold |
| Features | Feed Through |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.36 | |
| 10 | $ 1.15 | |||
| 25 | $ 1.10 | |||
| 72 | $ 1.08 | |||
| 144 | $ 1.03 | |||
| 288 | $ 0.94 | |||
| 504 | $ 0.84 | |||
| 1008 | $ 0.75 | |||
| 2448 | $ 0.68 | |||
Description
General part information
AWLP 30 Series
30 Position Ribbon Cable, DIP Header Connector Gray IDC Through Hole
