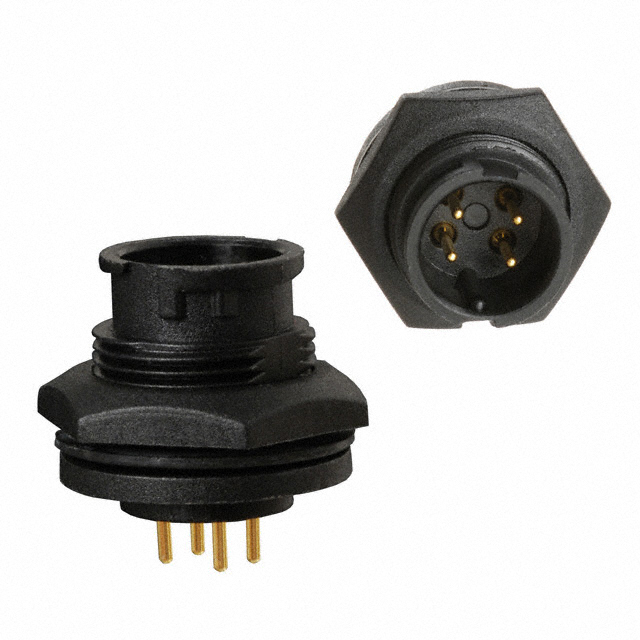

A-CR-04PMMP-LC-WP

Obsolete

Assmann WSW Components

CONN RCPT MALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Obsolete

Assmann WSW Components

CONN RCPT MALE 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	A-CR-04PMMP-LC-WP

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Termination	Solder

Part	Ingress Protection	Primary Material	Connector Type	Color	Shell Material	Mounting Feature	Current Rating (Amps)	Fastening Type	Termination	Mounting Type	Shielding	Orientation	Number of Positions	Contact Finish - Mating	Contact Material	Features	Backshell Material, Plating
Assmann WSW Components A-CR-04PMMP-LC-WP	IP67 - Dust Tight Waterproof	Plastic	Male Pins Receptacle	Black	Glass Filled Nylon Polyamide (PA)	Bulkhead - Front Side Nut	5 A	Bayonet Lock	Solder	Panel Mount Through Hole	Unshielded	Keyed	4	Gold	Copper Alloy
Assmann WSW Components A-CR-04BFFA-L180-WP	IP66	Plastic	Female Sockets Plug	Black	Glass Filled Nylon Polyamide (PA)		5 A	Bayonet Lock		Free Hanging (In-Line)	Unshielded	Keyed	4	Gold	Copper Alloy	Backshell Coupling Nut	Glass Filled Nylon Polyamide (PA)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

No documents available
