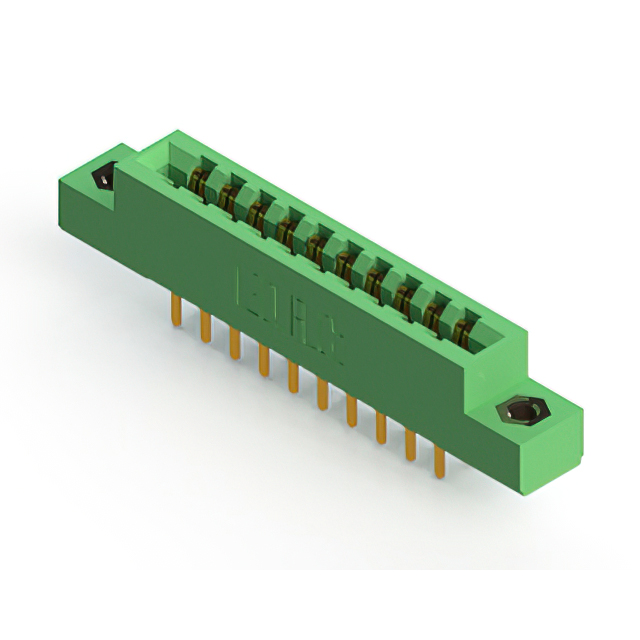

315-020-520-207
ActiveEDAC Inc.
3.96MM STRAIGHT 20P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
315-020-520-207
ActiveEDAC Inc.
3.96MM STRAIGHT 20P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 315-020-520-207 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 20 |
| Number of Positions/Bay/Row [custom] | 10 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
315-020 Series
| Part | Read Out | Contact Finish | Contact Type | Termination | Number of Positions/Bay/Row [custom] | Number of Rows | Gender | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Features | Number of Positions | Pitch [x] | Pitch [x] | Termination Rows | Material - Insulation | Color | Mounting Type | Card Type | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Dual | Gold | Semi Bellows | Solder | 10 | 2 | Female | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Card Extender | 20 | 0.156 in | 3.96 mm | 2 | Polyester Thermoplastic | Green | Board Edge Straddle Mount | Non Specified - Dual Edge | |||
EDAC Inc. | Dual | Gold | Semi Bellows | Solder | 10 | 2 | Female | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 20 | 0.156 in | 3.96 mm | 2 | Polyester Thermoplastic | Green | Panel Mount Through Hole | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Dual | Gold | Semi Bellows | Solder | 10 | 2 | Female | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 20 | 0.156 in | 3.96 mm | 2 | Polyester Thermoplastic | Green | Panel Mount Through Hole | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Dual | Gold | Semi Bellows | Solder | 10 | 2 | Female | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 20 | 0.156 in | 3.96 mm | 2 | Polyester Thermoplastic | Green | Panel Mount Through Hole | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 3.96 mm | 0.156 in | |
EDAC Inc. | Dual | Gold | Semi Bellows | Solder | 10 | 2 | Female | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Card Extender | 20 | 0.156 in | 3.96 mm | 2 | Polyester Thermoplastic | Green | Board Edge Straddle Mount | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | ||
EDAC Inc. | Dual | Gold | Semi Bellows | Solder | 10 | 2 | Female | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | Card Extender | 20 | 0.156 in | 3.96 mm | 2 | Polyester Thermoplastic | Green | Board Edge Straddle Mount | Non Specified - Dual Edge | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " |
EDAC Inc. | Dual | Gold | Semi Bellows | Solder Eyelet(s) | 10 | 2 | Female | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 20 | 0.156 in | 3.96 mm | 2 | Polyester Thermoplastic | Green | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | Dual | Gold | Semi Bellows | Solder | 10 | 2 | Female | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 20 | 0.156 in | 3.96 mm | 2 | Polyester Thermoplastic | Green | Board Edge Straddle Mount | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | |||
EDAC Inc. | Dual | Gold | Semi Bellows | Solder | 10 | 2 | Female | 10 Áin | 0.25 Ám | Copper Alloy | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 20 | 0.156 in | 3.96 mm | 2 | Polyester Thermoplastic | Green | Panel Mount Through Hole | Non Specified - Dual Edge | Flush Mount M3 Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
315-020 Series
20 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
