BOARD EVAL FOR AS1364-AD

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

BOARD EVAL FOR AS1364-AD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AS1364-TD-AD_EK_ST	AS1364 Series

Board Type	Fully Populated	Fully Populated
Channels per IC	1 - Single	1 - Single
Contents	-	Board(s)
Control Features	-	Enable, Power Good
Current - Output	1 A	1 A
Current - Quiescent (Iq)	-	150 çA
Current - Supply (Max)	-	200 µA
Mounting Type	-	Surface Mount
Number of Regulators	-	1
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Configuration	-	Positive
Output Type	-	1.81 mOhm
Package / Case	-	8-WDFN Exposed Pad
Protection Features	-	Over Current, Over Temperature
PSRR	-	46 dB
PSRR	-	78 dB
Regulator Type	Positive Adjustable	Positive Adjustable, Positive Fixed
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	8-TDFN (3x3)
Utilized IC / Part	AS1364	AS1364
Voltage - Input (Max)	-	5.5 V
Voltage - Output	3.3 V	1.8 - 3.3 V
Voltage - Output (Min/Fixed)	-	1.8 V

IC REG LINEAR 3V 1A 8TDFN

Part	Output Type	Package / Case	Current - Quiescent (Iq)	Output Configuration	Supplier Device Package	Control Features	Voltage - Input (Max) [Max]	Mounting Type	Current - Supply (Max) [Max]	Current - Output	Operating Temperature [Max]	Operating Temperature [Min]	Number of Regulators	Protection Features	PSRR [Min]	PSRR [Max]	Voltage - Output (Min/Fixed)	Utilized IC / Part	Voltage - Output	Board Type	Regulator Type	Channels per IC	Supplied Contents	Contents
ams-OSRAM USA INC. AS1364-BTDT-30-1K	1.81 mOhm	8-WDFN Exposed Pad	150 çA	Positive	8-TDFN (3x3)	Enable, Power Good	5.5 V	Surface Mount	200 µA	1 A	85 °C	-40 °C	1	Over Current, Over Temperature	46 dB	78 dB
ams-OSRAM USA INC. AS1364-BTDT-18	1.81 mOhm	8-WDFN Exposed Pad	150 çA	Positive	8-TDFN (3x3)	Enable, Power Good	5.5 V	Surface Mount	200 µA	1 A	85 °C	-40 °C	1	Over Current, Over Temperature	46 dB	78 dB	1.8 V
ams-OSRAM USA INC. AS1364-TD-AD_EK_ST										1 A								AS1364	3.3 V	Fully Populated	Positive Adjustable	1 - Single	Board(s)
ams-OSRAM USA INC. AS1364-TD-18_EK_ST										1 A								AS1364	1.8 V		Positive Fixed	1 - Single		Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

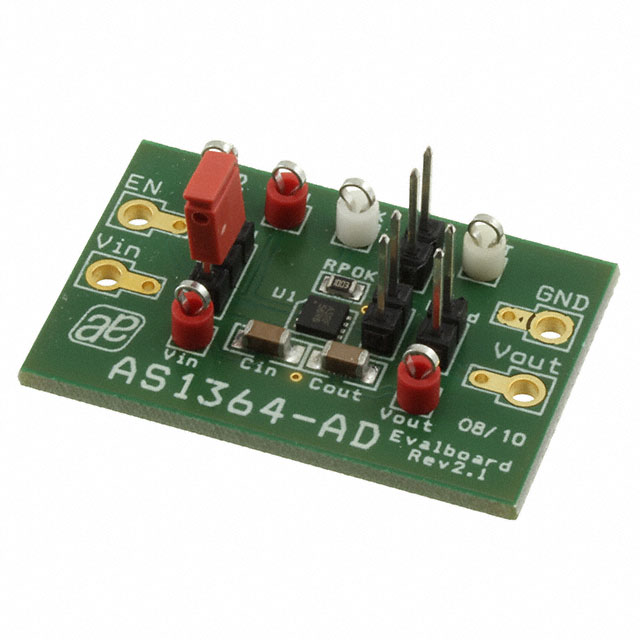

AS1364 1 - Single Channels per IC Positive Adjustable Linear Voltage Regulator Evaluation Board
