Q-1Z04D00011.5M
ActiveAmphenol Custom Cable

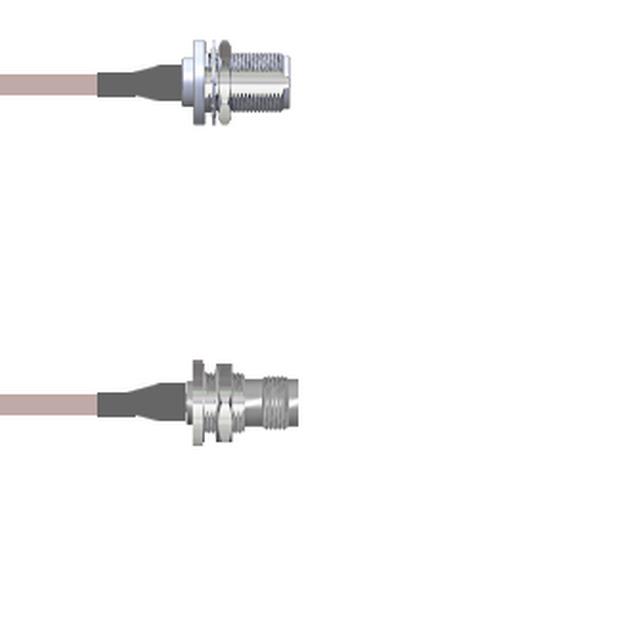

CBL ASSY NTYPE-TNC JCK-JCK 4.9'
Deep-Dive with AI
Search across all available documentation for this part.
Q-1Z04D00011.5M
ActiveAmphenol Custom Cable
CBL ASSY NTYPE-TNC JCK-JCK 4.9'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-1Z04D00011.5M |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Type | RG-178 |
| Color | Copper |
| Features | Shielded |
| Frequency - Max [Max] | 11 GHz |
| Length | 59.1 in |
| Length | 4.9 ft |
| Length | 1.5 m |
| Overall Impedance | 50 Ohms |
Q-1Z04D0 Series
| Part | 1st Connector | 2nd Contact Gender | Color | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | 1st Connector Mounting Type | Features | Frequency - Max [Max] | 2nd Connector | Length | Length | Length | 1st Contact Gender | Cable Type | Overall Impedance | 1st Connector Mounting Feature | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Custom Cable | N-Type Jack | Female | Copper | Panel Mount | Bulkhead - Front Side Nut | Panel Mount | Shielded | 11 GHz | TNC Jack | 8.2 ' | 98.4 in | 2.5 m | Female | RG-178 | 50 Ohms | Bulkhead - Front Side Nut | ||
Amphenol Custom Cable | N-Type Jack | Female | Copper | Panel Mount | Bulkhead - Front Side Nut | Panel Mount | Shielded | 11 GHz | TNC Jack | 24 " | 609.6 mm | Female | RG-178 | 50 Ohms | Bulkhead - Front Side Nut | |||
Amphenol Custom Cable | N-Type Jack | Female | Copper | Panel Mount | Bulkhead - Front Side Nut | Panel Mount | Shielded | 11 GHz | TNC Jack | 4 ft | 48 in | 1200 mm | Female | RG-178 | 50 Ohms | Bulkhead - Front Side Nut | ||
Amphenol Custom Cable | N-Type Jack | Female | Copper | Panel Mount | Bulkhead - Front Side Nut | Panel Mount | Shielded | 11 GHz | TNC Jack | 36 in | 91.44 cm | Female | RG-178 | 50 Ohms | Bulkhead - Front Side Nut | |||
Amphenol Custom Cable | N-Type Jack | Female | Copper | Panel Mount | Bulkhead - Front Side Nut | Panel Mount | Shielded | 11 GHz | TNC Jack | 6 in | 152.4 mm | Female | RG-178 | 50 Ohms | Bulkhead - Front Side Nut | |||
Amphenol Custom Cable | N-Type Jack | Female | Copper | Panel Mount | Bulkhead - Front Side Nut | Panel Mount | Shielded | 11 GHz | TNC Jack | 19.69 " | 50 cm | Female | RG-178 | 50 Ohms | Bulkhead - Front Side Nut | |||
Amphenol Custom Cable | N-Type Jack | Female | Copper | Panel Mount | Bulkhead - Front Side Nut | Panel Mount | Shielded | 11 GHz | TNC Jack | Female | RG-178 | 50 Ohms | Bulkhead - Front Side Nut | 9.843 " | 250 mm | |||
Amphenol Custom Cable | N-Type Jack | Female | Copper | Panel Mount | Bulkhead - Front Side Nut | Panel Mount | Shielded | 11 GHz | TNC Jack | 12 " | 304.8 mm | Female | RG-178 | 50 Ohms | Bulkhead - Front Side Nut | |||
Amphenol Custom Cable | N-Type Jack | Female | Copper | Panel Mount | Bulkhead - Front Side Nut | Panel Mount | Shielded | 11 GHz | TNC Jack | 4.9 ft | 59.1 in | 1.5 m | Female | RG-178 | 50 Ohms | Bulkhead - Front Side Nut | ||
Amphenol Custom Cable | N-Type Jack | Female | Copper | Panel Mount | Bulkhead - Front Side Nut | Panel Mount | Shielded | 11 GHz | TNC Jack | 9.8 ' | 118.1 in | 3 m | Female | RG-178 | 50 Ohms | Bulkhead - Front Side Nut |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 65.65 | |
| 25 | $ 61.17 | |||
| 50 | $ 56.69 | |||
| 100 | $ 52.85 | |||
| 250 | $ 49.64 | |||
Description
General part information
Q-1Z04D0 Series
Cable Assembly Coaxial N-Type to TNC RG-178 59.1" (1.5m) 4.9'
