SMH-104-02-G-D-01-TR

Active

Samtec Inc.

CONN SOCKET STRIP SKT 8 POS 2.54MM SOLDER RA SIDE ENTRY SMD T/R

Search across all available documentation for this part.

Active

Samtec Inc.

CONN SOCKET STRIP SKT 8 POS 2.54MM SOLDER RA SIDE ENTRY SMD T/R

Technical Specifications

Parameters and characteristics for this part

Specification	SMH-104-02-G-D-01-TR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.195 in
Insulation Height	4.95 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Mounting Type	Material Flammability Rating	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Termination	Number of Positions Loaded	Contact Finish - Mating	Connector Type	Insulation Height	Insulation Height	Number of Positions	Contact Shape	Pitch - Mating	Pitch - Mating	Number of Rows	Contact Material	Contact Finish Thickness - Post	Fastening Type	Contact Type	Insulation Height [z]	Insulation Height [z]
Samtec Inc. SMH-104-02-G-D-TR	Surface Mount Right Angle	UL94 V-0	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.51 µm	20 µin	Gold	-55 °C	125 °C	Black	Solder	All	Gold	Receptacle	0.195 in	4.95 mm	8	Square	0.1 in	2.54 mm	2	Phosphor Bronze	Flash	Push-Pull	Forked
Samtec Inc. SMH-104-02-T-S	Surface Mount Right Angle	UL94 V-0	Liquid Crystal Polymer (LCP)					Tin	-55 °C	105 ░C	Black	Solder	All		Receptacle			4	Square	0.1 in	2.54 mm	1	Phosphor Bronze		Push-Pull	Forked	0.095 in	2.41 mm
Samtec Inc. SMH-104-02-G-D-01-TR	Surface Mount Right Angle	UL94 V-0	Liquid Crystal Polymer (LCP)	2.54 mm	0.1 in	0.51 µm	20 µin	Gold	-55 °C	125 °C	Black	Solder	All	Gold	Receptacle	0.195 in	4.95 mm	8	Square	0.1 in	2.54 mm	2	Phosphor Bronze	Flash	Push-Pull	Forked

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	425	$ 2.73

General part information

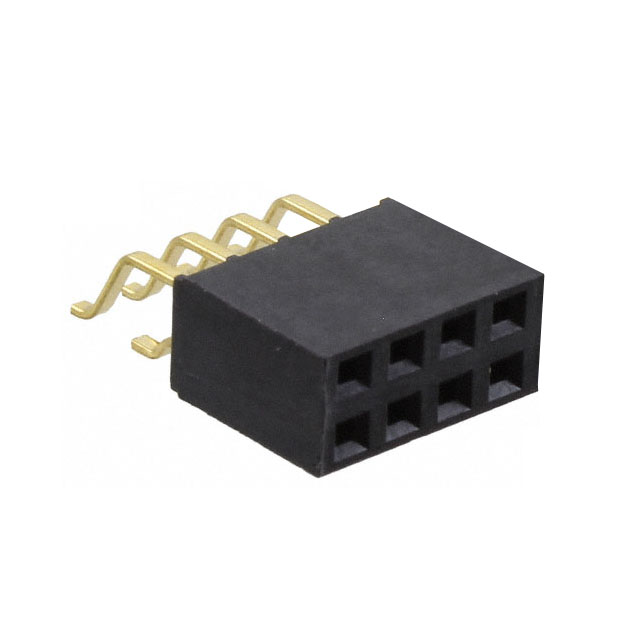

8 Position Receptacle Connector 0.100" (2.54mm) Surface Mount, Right Angle Gold
