BMP180-SHUTL

Obsolete

Bosch Sensortec

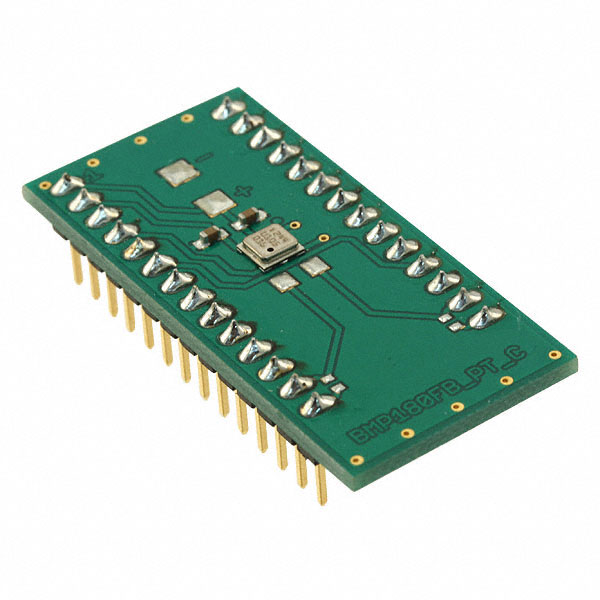

SHUTTLE BOARD BMP180

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD BMP180

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BMP180 Pressure Sensor Platform Evaluation Expansion Board

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

SENSOR 15.95PSIA 19BIT 7LGA

Part	Applications	Output [Min]	Output [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Supplier Device Package	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Output Type	Package / Case	Maximum Pressure	Maximum Pressure	Accuracy	Port Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Utilized IC / Part	Type	Function	Contents
Bosch Sensortec BMP180	Board Mount	16 b	19 b	Surface Mount	85 °C	-40 °C	SMD (SMT) Tab	7-LGA	15.95 PSI	4.35 PSI	110 kPa	30 kPa	I2C	7-VLGA	1000 kPa	145.04 PSI	2 %	No Port	3.6 V	1.62 V
Bosch Sensortec BMP180-SHUTL																					BMP180	Sensor	Pressure	Board(s)
