PBU1007

Obsolete

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Search across all available documentation for this part.

Obsolete

Diodes Inc

NRND = NOT RECOMMENDED FOR NEW DESIGN

Technical Specifications

Parameters and characteristics for this part

Specification	PBU1007

Current - Average Rectified (Io)	10 A
Current - Reverse Leakage @ Vr	10 çA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C

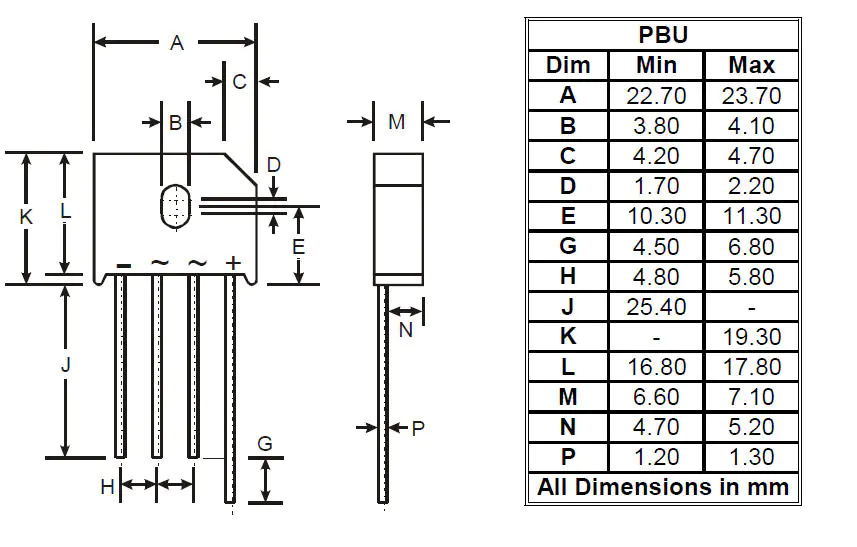

Package / Case	4-SIP, PBU
Supplier Device Package	PBU
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1 V
Voltage - Peak Reverse (Max) [Max]	1000 V

NRND = Not Recommended for New Design

Part	Package / Case	Current - Reverse Leakage @ Vr	Supplier Device Package	Current - Average Rectified (Io)	Technology	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type	Voltage - Peak Reverse (Max) [Max]	Mounting Type
Diodes Inc PBU1007	4-SIP PBU	10 çA	PBU	10 A	Standard	1 V	150 °C	-65 °C	Single Phase	1000 V	Through Hole
