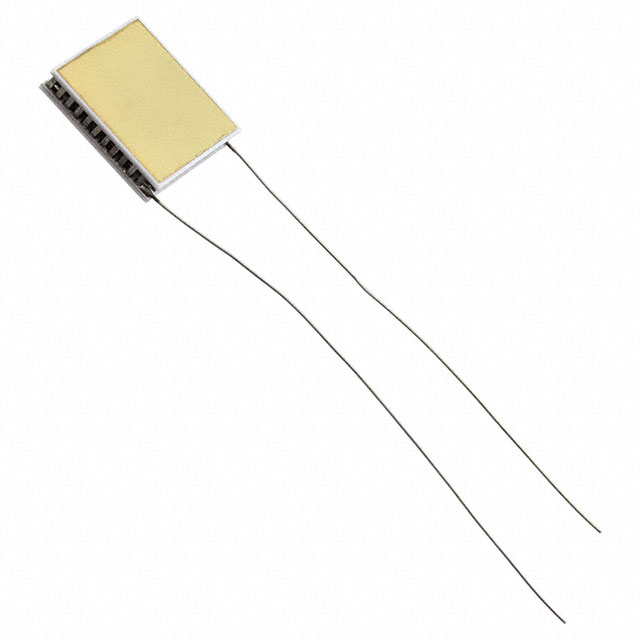

NL1013T-02AC

Active

Marlow Industries, Inc.

TEM 1.16X13.16X2.41MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 1.16X13.16X2.41MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NL1013T-02AC	NL1013T Series

Current - Max [Max]	1 A	1 A
Delta Tmax @ Th	61 °C	61 °C
Features	Lead Wires, Exterior Metallization	Sealed - Silicone RTV, Lead Wires, Exterior Metallization, Exterior Metallization (Both Sides)
Height [z]	2.41 mm	2.41 mm
Number of Stages	1	1
Qmax @ Th	4.8 W	4.8 W
Resistance	7.42 Ohms	7.42 Ohms
Size / Dimension [x]	13.16 mm	13.16 mm
Size / Dimension [y]	13.16 mm	13.16 mm
Voltage - Max [Max]	8.5 V	8.5 V

TEM 1.16X13.16X2.41MM

Part	Size / Dimension [x]	Size / Dimension [y]	Features	Resistance	Current - Max [Max]	Voltage - Max [Max]	Qmax @ Th	Number of Stages	Delta Tmax @ Th	Height [z]
Marlow Industries, Inc. NL1013T-04AC	13.16 mm	13.16 mm	Lead Wires, Sealed - Silicone RTV	7.42 Ohms	1 A	8.5 V	4.8 W	1	61 °C	2.41 mm
Marlow Industries, Inc. NL1013T-02AC	13.16 mm	13.16 mm	Exterior Metallization, Lead Wires	7.42 Ohms	1 A	8.5 V	4.8 W	1	61 °C	2.41 mm
Marlow Industries, Inc. NL1013T-03AC	13.16 mm	13.16 mm	Lead Wires	7.42 Ohms	1 A	8.5 V	4.8 W	1	61 °C	2.41 mm
Marlow Industries, Inc. NL1013T-01AC	13.16 mm	13.16 mm	Exterior Metallization (Both Sides), Lead Wires	7.42 Ohms	1 A	8.5 V	4.8 W	1	61 °C	2.41 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 4.8W @ 27°C 1 A 85°C
