Q-290750013.75M

Active

Amphenol Custom Cable

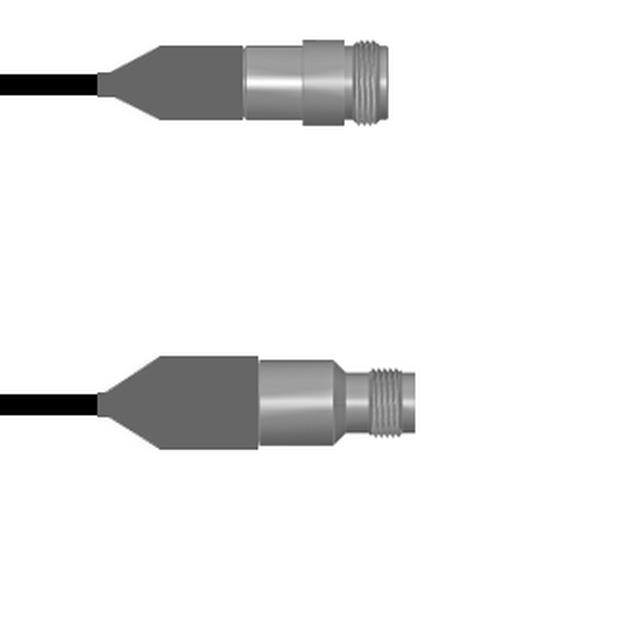

CBL ASSY RPTNC-NTYPE J-J 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-290750013.75M

Active

Amphenol Custom Cable

CBL ASSY RPTNC-NTYPE J-J 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-290750013.75M

1st Connector	RP-TNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	LMR 400
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	29.53 "
Length	750 mm
Overall Impedance	50 Ohms
Style	RP-TNC to N-Type

Q-290750 Series

Part	Color	2nd Contact Gender	2nd Connector Mounting Type	1st Contact Gender	Features	1st Connector Mounting Type	Cable Type	Style	Length	Length	Length	Overall Impedance	Frequency - Max [Max]	1st Connector	2nd Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-290750013060i	Black	Female	Free Hanging (In-Line)	Male	Shielded	Free Hanging (In-Line)	LMR 400	RP-TNC to N-Type	5 ft	1.5 m	5 '	50 Ohms	6000 MHz	RP-TNC Jack	N-Type Jack
Amphenol Custom Cable Q-290750013.25M	Black	Female	Free Hanging (In-Line)	Male	Shielded	Free Hanging (In-Line)	LMR 400	RP-TNC to N-Type				50 Ohms	6000 MHz	RP-TNC Jack	N-Type Jack	9.843 "	250 mm
Amphenol Custom Cable Q-290750013009i	Black	Female	Free Hanging (In-Line)	Male	Shielded	Free Hanging (In-Line)	LMR 400	RP-TNC to N-Type		228.6 mm	9 "	50 Ohms	6000 MHz	RP-TNC Jack	N-Type Jack
Amphenol Custom Cable Q-2907500130.5M	Black	Female	Free Hanging (In-Line)	Male	Shielded	Free Hanging (In-Line)	LMR 400	RP-TNC to N-Type		50 cm	19.69 "	50 Ohms	6000 MHz	RP-TNC Jack	N-Type Jack
Amphenol Custom Cable Q-290750013002M	Black	Female	Free Hanging (In-Line)	Male	Shielded	Free Hanging (In-Line)	LMR 400	RP-TNC to N-Type	6.6 ft	2 m	78.7 in	50 Ohms	6000 MHz	RP-TNC Jack	N-Type Jack
Amphenol Custom Cable Q-290750013003M	Black	Female	Free Hanging (In-Line)	Male	Shielded	Free Hanging (In-Line)	LMR 400	RP-TNC to N-Type	9.8 '	3 m	118.1 in	50 Ohms	6000 MHz	RP-TNC Jack	N-Type Jack
Amphenol Custom Cable Q-290750013003i	Black	Female	Free Hanging (In-Line)	Male	Shielded	Free Hanging (In-Line)	LMR 400	RP-TNC to N-Type		76.2 mm	3 in	50 Ohms	6000 MHz	RP-TNC Jack	N-Type Jack
Amphenol Custom Cable Q-2907500132.5M	Black	Female	Free Hanging (In-Line)	Male	Shielded	Free Hanging (In-Line)	LMR 400	RP-TNC to N-Type	8.2 '	2.5 m	98.4 in	50 Ohms	6000 MHz	RP-TNC Jack	N-Type Jack
Amphenol Custom Cable Q-290750013.75M	Black	Female	Free Hanging (In-Line)	Male	Shielded	Free Hanging (In-Line)	LMR 400	RP-TNC to N-Type		750 mm	29.53 "	50 Ohms	6000 MHz	RP-TNC Jack	N-Type Jack
Amphenol Custom Cable Q-290750013048i	Black	Female	Free Hanging (In-Line)	Male	Shielded	Free Hanging (In-Line)	LMR 400	RP-TNC to N-Type	4 ft	1200 mm	48 in	50 Ohms	6000 MHz	RP-TNC Jack	N-Type Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 95.55
		25	$ 93.74
		50	$ 91.92
		100	$ 90.11
		250	$ 88.29

Description

General part information

Q-290750 Series

Cable Assembly Coaxial RP-TNC to N-Type LMR 400 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
