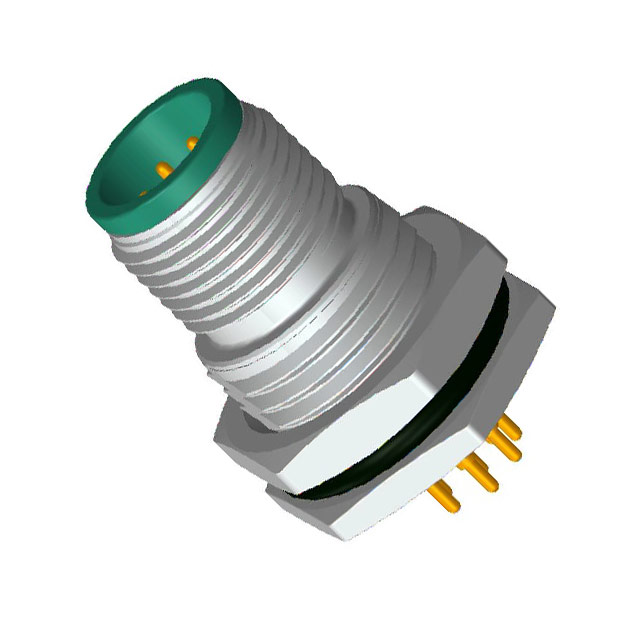

M12A-08PMMP-SF8001

Active

Amphenol LTW

CONN PLUG MALE 8POS GOLD SOLDER

Search across all available documentation for this part.

Active

Amphenol LTW

CONN PLUG MALE 8POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-08PMMP-SF8001

Backshell Material, Plating	Copper Alloy
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-8
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions	Shielding	Color	Primary Material	Ingress Protection	Shell Finish	Orientation	Current Rating (Amps)	Backshell Material, Plating	Connector Type	Mounting Type	Shell Material	Contact Material	Contact Finish - Mating	Mounting Feature	Insert Material	Shell Size - Insert	Voltage Rating
Amphenol LTW M12A-08PMMP-SF8001	-40 °C	105 ░C	Solder	8	Shielded	Silver	Metal	IP68 IP69K	Nickel	A	2 A	Copper Alloy	Male Pins Receptacle	Panel Mount Through Hole	Zinc Alloy	Copper Alloy	Gold	Bulkhead - Front Side Nut	Polyamide (PA) Nylon Glass Filled	M12-8	30 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Male Pins Solder
