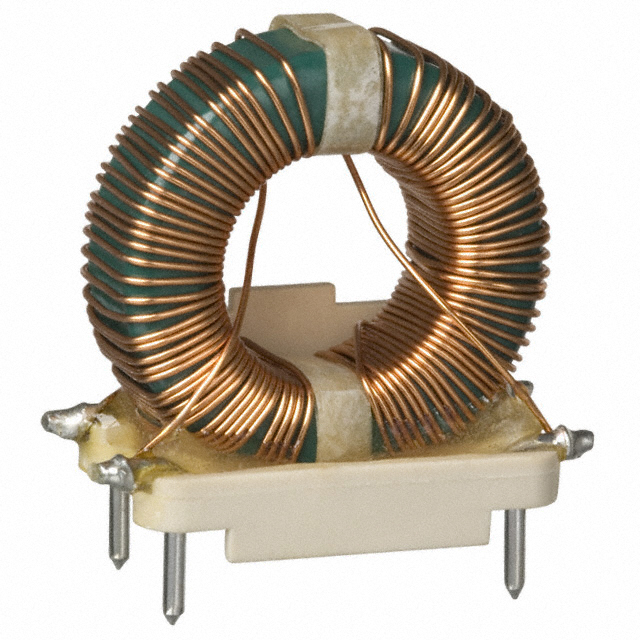

8104-RC
ActiveBourns Inc.
CMC 10MH 2.4A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
8104-RC
ActiveBourns Inc.
CMC 10MH 2.4A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 8104-RC |
|---|---|
| Current Rating (Max) [Max] | 2.4 A |
| DC Resistance (DCR) (Max) [Max] | 170 mOhm |
| Height (Max) | 30.48 mm |
| Height (Max) [Max] | 1.2 in |
| Inductance @ Frequency | 10 mH, 1 kHz |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 4 Lead |
| Package / Case | Vertical |
| Size / Dimension [x] | 30.48 mm |
| Size / Dimension [x] | 1.2 " |
| Size / Dimension [y] | 0.6 in |
| Size / Dimension [y] | 15.24 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.96 | |
| 10 | $ 3.07 | |||
| 25 | $ 2.78 | |||
| 50 | $ 2.76 | |||
Description
General part information
8104 Series
10 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 2.4A DCR 170mOhm
