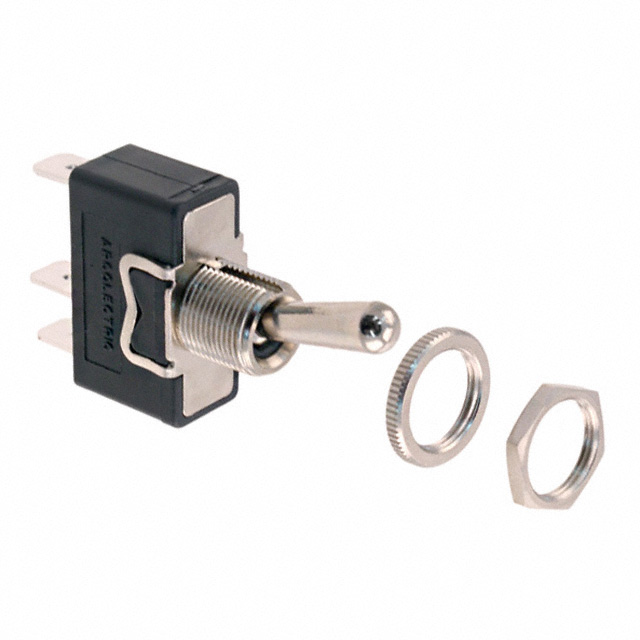

C3910BA
ActiveBULGIN LIMITED
SWITCH TOGGLE SPDT 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C3910BA
ActiveBULGIN LIMITED
SWITCH TOGGLE SPDT 16A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C3910BA |
|---|---|
| Actuator Length [x] | 17.5 mm |
| Actuator Type | Standard Round |
| Bushing Thread | 15/32-32 |
| Circuit | SPDT |
| Illumination | Non-Illuminated |
| Panel Cutout Dimensions [diameter] | 12.7 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 36 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.98 | |
| 10 | $ 8.99 | |||
| 25 | $ 8.61 | |||
| 50 | $ 8.19 | |||
| 100 | $ 7.86 | |||
| 250 | $ 7.39 | |||
| 500 | $ 6.82 | |||
| 1000 | $ 6.59 | |||
Description
General part information
C3910 Series
Toggle Switch SPDT Panel Mount
